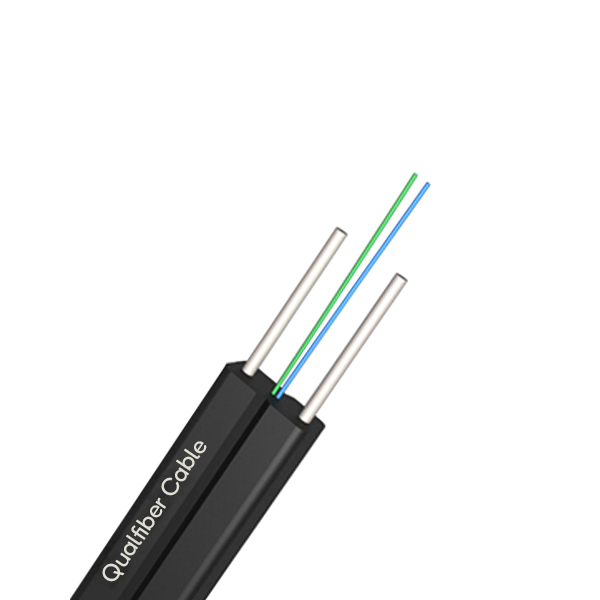

1,2,4,6,8,12 core outdoor FTTH drop Cable GJYXCH GJYFXFCH SM/MM optical fiber PVC LSZH
Cable construction
| No.of fiber | 1F-4F | |||||
| Gross weight | 8.5kg/km | |||||
| SM fiber | Fiber type | 9/125 | MFD | 8.6～9.8um | ||
| Cladding diameter | 125±0.7um | Cladding non-circularity | ≤0.7% | |||
| Coating diameter |
245±5um | Fiber color | standard spectrum | |||
| Strength member | Material | FRP / Steel wire | Color | white | ||
| Diameter | 0.5mm | Qty | 2 | |||
| Out sheath | Material | LSZH | Color | White / Black | ||
| Diameter | 2.0 (±0.1) *3.0mm (±0.1) | Thickness | ≧0.5mm | |||
Fiber Color
| 4 core Standard Colour Identification | ||||||||
| No. | 1 | 2 | 3 | 4 | ||||
| Color |  |
 |
 |
 |
||||
| Tensile strength | Long term（N） | 40N | ||||
| Short term（N） | 80N | |||||
| Crush load | Long term（N） | 500N/100mm | ||||
| Short term（N） | 1000N/100mm | |||||
| Bending radius | Dynamic | 20D | ||||
| Static | 10D | |||||
| Temperature | -20℃～+70℃ | |||||
Cable mechanical and environment characteristics
Fiber characteristics
| Fiber style | Unit | SM G652D | MM 50/125 | OM3-150 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.36/0.23 | ≤3.0/1.0 | ≤3.0/1.0 | |||
| Cladding diameter | um | 125±1 | 125±1 | 125±1 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |||
