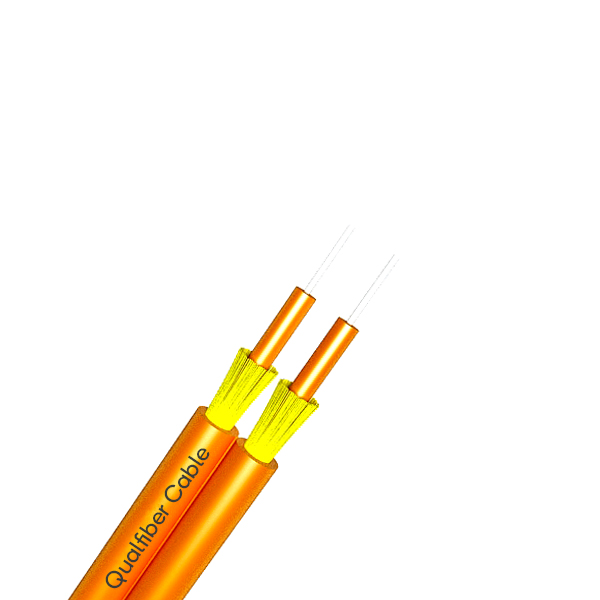

Buffered fiber is produced as the fiber is sheathed by buffer material. The selection of Top-quality fiber, specific production equipment, and accurately designed die make the best performance of the product.
Cable construction:
| No. of fiber | 2F | ||||||
| SM fiber | Fiber type | Single-mode | Concentricity error | ≤0.5um | |||
| MFD | 8.6～9.8um | Cladding non-circularity | ≤0.7% | ||||
| Cladding diameter | 125±1um | Fiber color | white and blue | ||||
| Tight buffer | Material | PVC | Color | white | |||
| Diameter | 0.9±0.05mm | Thickness | 0.32±0.05mm | ||||
| Yarn | Material | Kevlar yarn | Color | yellow | |||
| Type | 1000D | Qty | 3 strands/unit | ||||
| 4 strands/unit | |||||||
| Out sheath | Material | LSZH | Color | yellow | |||
| Diameter | 1.9±0.05mmx3.9±0.1 mm | Thickness | 0.35±0.05mm | ||||
| 2.9±0.05mmx5.9±0.1 mm | 0.45±0.05mm | ||||||
| Gross weight | 8.5±2kg/km (2.0mm) | ||||||
| 15±3kg/km (3.0mm) | |||||||
Cable mechanical and environment characteristics
| Tensile strength | Long term（N） | 90 (2.0mm) | 120 (3.0mm) | ||||
| Short term（N） | 150 (2.0mm) | 225 (3.0mm) | |||||
| Crush load | Long term（N） | 100N/100mm | |||||
| Short term（N） | 500N/100mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Temperature | -20℃～70℃ | ||||||
Package
Packing material: Wooden drum.
Packing length: 1km per drum or customization.
