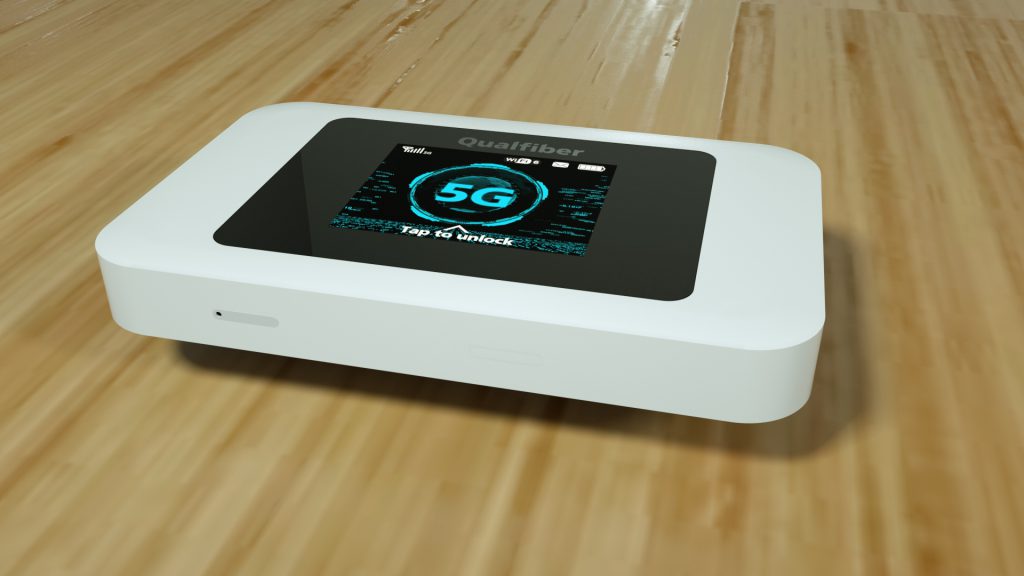

QMF-X90A is the portable mini router for end users. Built in Qualcomm SDX55 chipset, compliant with 3GPP Rel. 15, 5G NR, SA/NSA, Sub 6G/LTE Category 20 protocol. Support Wi-Fi 6, 802.11b/g/n/ac/ax, 2.4GHz & 5GHz Simultaneous Dual-Band Wi-Fi, Which can connect up to 64 Wi-Fi devices.
QMF-X90A Technical Specifications
| Network | |
| Protocol | 3GPP Rel. 15, 5G NR, SA/NSA, Sub 6G/LTE Category 20 |
| Chipset | Qualcomm SDX55 |
|
Band Frequency* |
5G: n41/n77/n78/n79/n1/n3/n5/n7/n8/n20/n28/n38/n40
4G: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32/B34/B38/B39/B40/B41/B42 3G: B1/B3/B5/B6/B8/B19 Up to 5X Carrier Aggregation |
|
Data Rate |
5G: Downlink/Uplink up to 3.3Gbps /250Mbps
LTE:Downlink/Uplink up to 2.0Gbps/150Mbps WCDMA:Downlink/Uplink up to 42Mbps/5.76Mbps |
| Antenna | Internal,4×4 MIMO |
| Wi-Fi | |
| Protocol | Wi-Fi 6, 802.11b/g/n/ac/ax, 2.4GHz & 5GHz Simultaneous Dual-Band Wi-Fi; |
| Clients | 64 Users |
|
Data Rate |
802.11b: Up to 11 Mbps 802.11g: Up to 54 Mbps 802.11n: Up to 300 Mbps 802.11ac:Up to 400 Mbps
802.11ax: Up to 1201 Mbps |
| Antenna | 2 Internal Antenna; 2×2 MIMO(MU-MIMO); |
| Hardware General | |
| Dimensions | 137x85x23.5mm |
| Weight | 220g |
| Battery | Removable lithium-ion, 5000mAh,6 hours continuous use; |
| Display | 2.4” Color Touchscreen Display |
| Button | Power Button / Reset Button |
|
Interface |
USB Port: Type-C
Ethernet Port: RJ45 Ethernet SIM Slot: Nano SIM, 4FF; |
| Software General | |
| Management | Web-UI Management |
| Network Setup | APN management/Network selection/Statistics/Data Use(Optional)) |
| Wi-Fi Setup | SSID Broadcast/Hiding, WPS,Security via WEP, WPA-PSK, WPA2-PSK, Wi-Fi MAC filter |
| Security | Firewall Switch/VPN Passthrough/DMZ/Port Forwarding/Port Filter/NAT |
| SMS | SMS Send/Receive; USSD(Optional) |
| DHCP | DHCP Server, IPv4/IPv6 dual st ck(Optional) |
| System | Windows:Win7/8/10 |
| Browser | IE9+, Firefox, Google Chrome, Safari, Opera |
| Environment | |
| Temperature | Working Temperature: 0°C to 40°C |
| Humidity | 5% to 95%(non-condensing) |
|
Band Frequency*: More Frequency supports, Please feel free and contact with us; |
|
