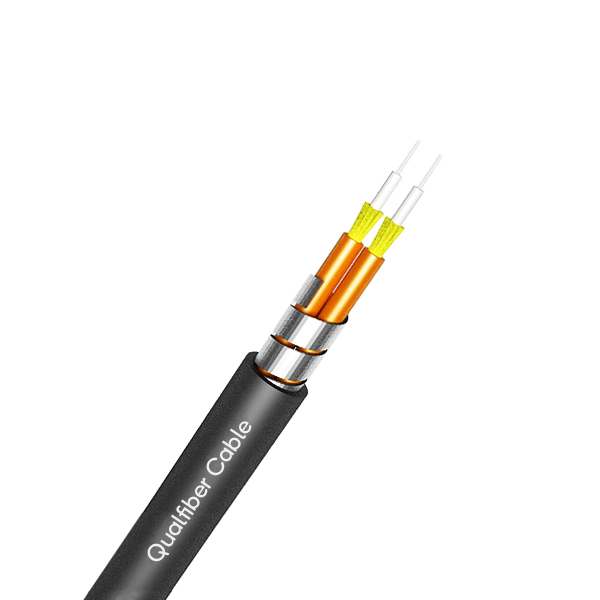

The armored cable is a special cable with a stainless steel tube inside the cable which could protect the fiber bite by ant, mouse-related rodent animals. This cable could be used as a normal electric wire.
Cable Construction
| Fiber count | 2F | ||||||
| Tight buffer | Material | PVC | Color | Orange | |||
| Diameter | 0.9mm | Thickness | 0.30±0.03mm | ||||
| Inner sheath | Material | LSZH | Diameter | 1.9±0.05mm | |||
| Dupont kevlar yarn | Thickness | 0.35±0.03mm | |||||
| Armor | Material | Braided spiral steel wire | Diameter | 5.0±0.1mm | |||
| Outer Sheath | Material | HDPE | Color | Black | |||
| Diameter | 7.0±0.1mm | Thickness | 1.0±0.05mm | ||||
| Net weight | 30±5kg/km | ||||||
Cable mechanical and environment characteristics
| Tensile strength | Long term （N） | 200 | |||||
| Short term（N） | 400 | ||||||
| Crush load | Long term（N/100mm） | 1000 | |||||
| Short term（N/100mm） | 2000 | ||||||
| Bending radius | Dynamic (mm) | 20D | |||||
| Static (mm) | 10D | ||||||
| Temperature | -20℃~70℃ | ||||||
Fiber characteristics
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.4/0.3 | ≤3.0/1.5 | ≤3.0/1.5 | |||
| Cladding diameter | um | 125±1 | 125±1 | 125±1 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |||
Package
Packing material: Wooden drum.
Packing length: 2km per drum or customization.
