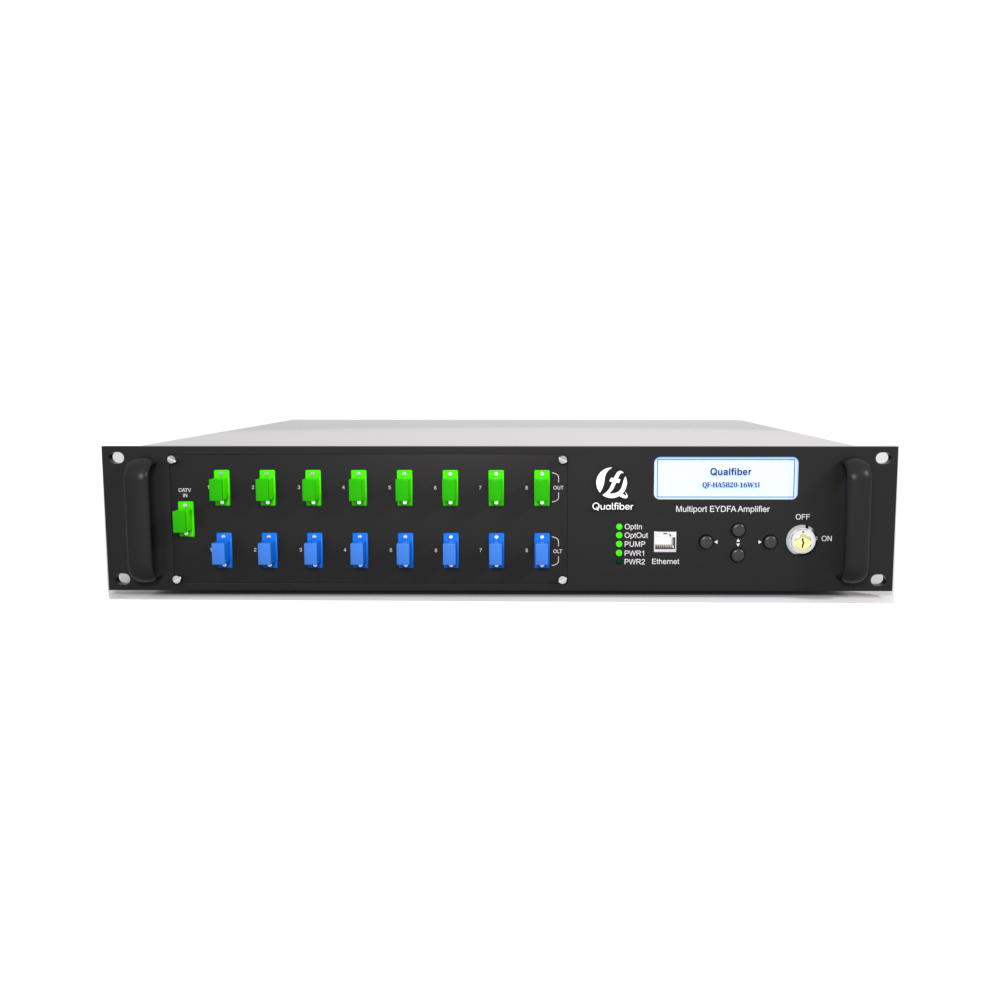

8 Port EDFA with WDM

Qualfiber series 8port EDFA is a low noise, high performance, FTTP high power, multi-ports optical amplifier with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed WDM. Every external up-link optical port of optical amplifier can connect with OLT PON port very conveniently. Each 1550nm (CATV)’s output optical port multiplex 1310/1490n’s data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.

CATV Signal Input Port 1 Port2 Ports

Optical output power each Port ≥16dBm≥19dBm≥20dBmCustomized

Power Supply SingleDual

CATV Input Port SC/APCLC/APCCustomized

GPON Input Port LC/UPCLC/APCSC/APCSC/UPCCustomized

COM Output Port LC/APCLC/UPCSC/APCSC/UPCCustomized

Product Detail

Qualfiber uses the world’s top brand pump lasers and US OFS active fiber. Perfect APC, ACC, ATC control and good ventilation and heat dissipation design ensure the long life and high reliability of PUMP Laser. RJ45 provides the SNMP network management interface. The full dot-matrix LCD on the front panel provides the operating parameters and alarms of the whole machine. Light is lost and the laser is automatically turned off, providing laser safety protection. All optical ports can be installed on the front panel or can be installed on the rear panel. The product’s high quality, high reliability and excellent cost performance, carrier-grade security reliability and network management are ideal choices for system integrators and system operators.

PRODUCT FEATURE

•1540~1563nm operating bandwidth for optical amplifier

•500~10000mW (27~40mW) high output power

•Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )

•High performance and high reliability

•19” 2U rack up to optional 8~64 up-link ports, which used in OLT; And 8~64

1550nm output optical ports, multiplex the 1310/1490nm data stream.

•Optional dual optical input, built-in 2 × 1 optical switch

•Dual power supply optional, 1+1 backup

•Lock and password function

•Can compatible with any FTTx PON technology: EPON/GEPON, GPON, BPON,

DPON

•Comprehensive SNMP management

•Efficient space, simple and reliable in construction/maintenance

•The industry’s best performance-price ratio

MAIN APPLICATION

•FTTx PON

•RFoG

OPTIC/ELECTRICAL SCHEMA

TECHNIQUE INDEX

Performance			Index			Supplement
Performance			Min.	Typ.	Max.	Supplement
Optical feature	CATV operation wavelength	(nm)	1540		1563	CATV
	OLT pass wavelength	(nm)		1310/1490
	CATV pass wavelength loss	(dB)			0.8	1550nm
	OLT pass wavelength loss	(dB)			0.8	1310/1490nm
	CATV & OLT isolation	(dB)	40
	Number of uplink optical ports (for OLT)	(pcs)		8	64	2U
	CATV input power (Pi)	(dBm)	-10	≥+3	+10
	Total output power1)	(dBm)	27		40	2U
	Number of output ports	(pcs)		16	64	2U
	Each port output power	(dBm)	10		23
	Difference of each output power	(dB)	-0.5		+0.5
	Output power adjustable range	(dBm)	-10		0	Optional
	Noise figure (Pin=0dBm)	(dB)		4.5	5.0
	Polarization dependence loss (PDL)	(dB)			0.3
	Polarization dependence gain (PDG)	(dB)			0.4
	Polarization mode dispersion (PMD)	(ps)			0.3
	Input/output isolation	(dB)	30
	Pump power leakage	(dBm)			-30
	Echo loss	(dB)	55			APC
Generalfeature	Network management interface		RJ45			SNMP
Generalfeature	Power supply	(V)	90		265	220VAC
