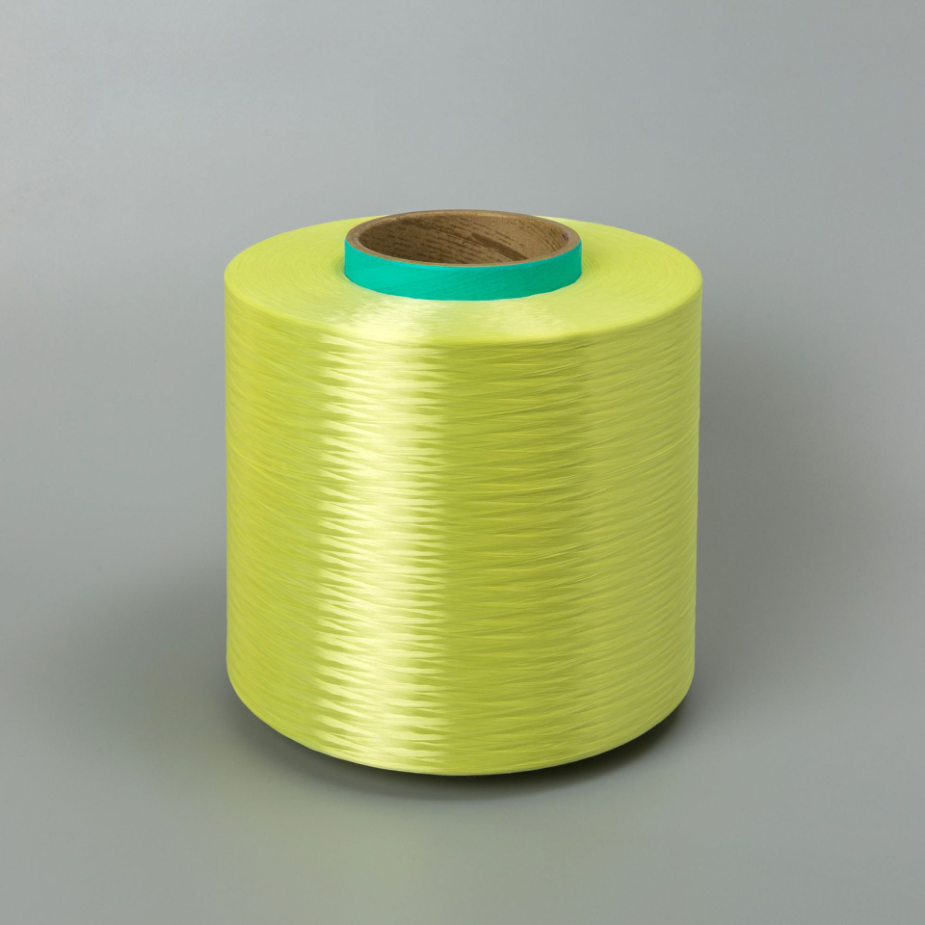

Aramid Fiber Filament is one of the three largest high-performance fibers in the world. It has excellent properties such as high specific strength, high specific modulus, high temperature resistance, friction resistance, cutting resistance, fatigue resistance and flame retardancy. Typical representatives of high-performance fibers, the main specifications are 100, 200, 400, 800, 1000, 1500, 3000, 4500D, in addition to yellow aramid fiber, we also provide military green, navy blue, black, red and other special colors of aromatic Polyester filament, the product is mainly used in the fields of woven fabric, webbing, fiber optic cable / cable reinforcement, rope and packing braiding, high temperature resistant hose, composite material reinforcement and so on.
Aramid filament product data sheet
| Specification (D) | Tensile strength (N) | Tensile strength (CN / Dtex) | Elongation at break (%) | Modulus (CN / Dtex) | Single fiber fineness (D) |
| 100 | 19-24 | 18-22 | <4 | ≥500 | 1.5 |
| 200 | 39-48 | 18-22 | <4 | ≥500 | 1.5 |
| 400 | 79-97 | 18-22 | <4 | ≥500 | 1.5 |
| 800 | 158-193 | 18-22 | <4 | ≥500 | 1.5 |
| 1000 | 198-242 | 18-22 | <4 | ≥500 | 1.5 |
| 1500 | 297-363 | 18-22 | <4 | ≥500 | 1.5 |
| 3000 | 594-726 | 18-22 | <4 | ≥500 | 1.5 / 3.4 |
| 4500 | 890-1050 | 18-22 | <4 | ≥500 | 1.5 / 3.4 |
The above data is for reference only, the actual shipping documents shall prevail;
This product is packed in light-proof plastic bag or plastic film, the outer carton, and the label is placed in the package, or it can be packed according to customer requirements;
Store away from light at normal temperature;
This product is transported as non-dangerous goods.
