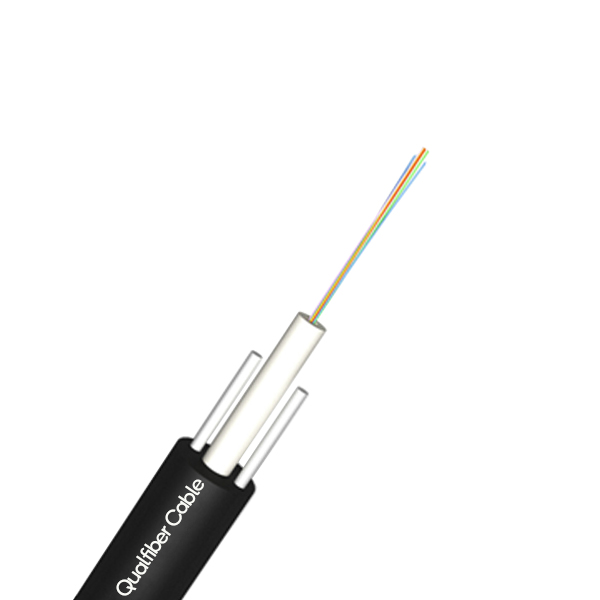

Structure details
| Fiber count | 2F-24F | ||||||
| Loose tube | Material | PBT | Color | Standard spectrum | |||
| Diameter | 2.8±0.1mm | Thickness | 0.4±0.05mm | ||||
| Strength member | Material | FRP | Diameter | Φ1.0mm | |||
| Out sheath | Material | MDPE | Color | Black | |||
| Diameter | 7.0±0.5mm | Thickness | 2.0±0.2mm | ||||
Fiber Color
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color |  |
 |
 |
 |
 |
|
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color |  |
 |
 |
 |
 |
 |
| No. | 13 | 14 | 15 | 16 | 17 | 18 |
| Color |  |
 |
 |
 |
 |
 |
| No. | 19 | 20 | 21 | 22 | 23 | 24 |
| Color |  |
 |
 |
 |
 |
 |
Tube Color
Mechanical and environment performance
| Tensile strength | Long term（N） | 400N | |||||
| Short term（N） | 800N | ||||||
| Crush load | Long term | 300N/100mm | |||||
| Short term | 1000N/100mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Installation Temperature | -10℃～+60℃ | ||||||
| Storage Temperature | -40℃～+70℃ | ||||||
Fiber Performance
| Fiber type | Unit | SM G652D | MM 50/125 | MM 62.5/125 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.36/0.24 | ≤3.0/1.5 | ≤3.0/1.5 | |||
| Cladding diameter | um | 125±1 | 125±1 | 125±1 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |||
Package
Packing material: Wooden drum.
Packing length: 2km per drum or customization.
