The optical fiber patch panel box is a high-density modular optical fiber distribution product, commonly used for fiber termination, fiber fusion splicing, fiber wiring, and fiber storage. The tray in the box adopts a downward sliding-out design, which can install adapter panels and high-density MPO/MTP wiring boxes. It is a common wiring tool for local area networks and data centers. It adopts a 19-inch standard rack (1U, 2U, and 4U optional), plug and play, easy to install, not only can protect the optical fiber, but also can manage the optical cable wiring. It can maximize the use of the limited space of the rack and cabinet. It is an ideal solution for high-density wiring.

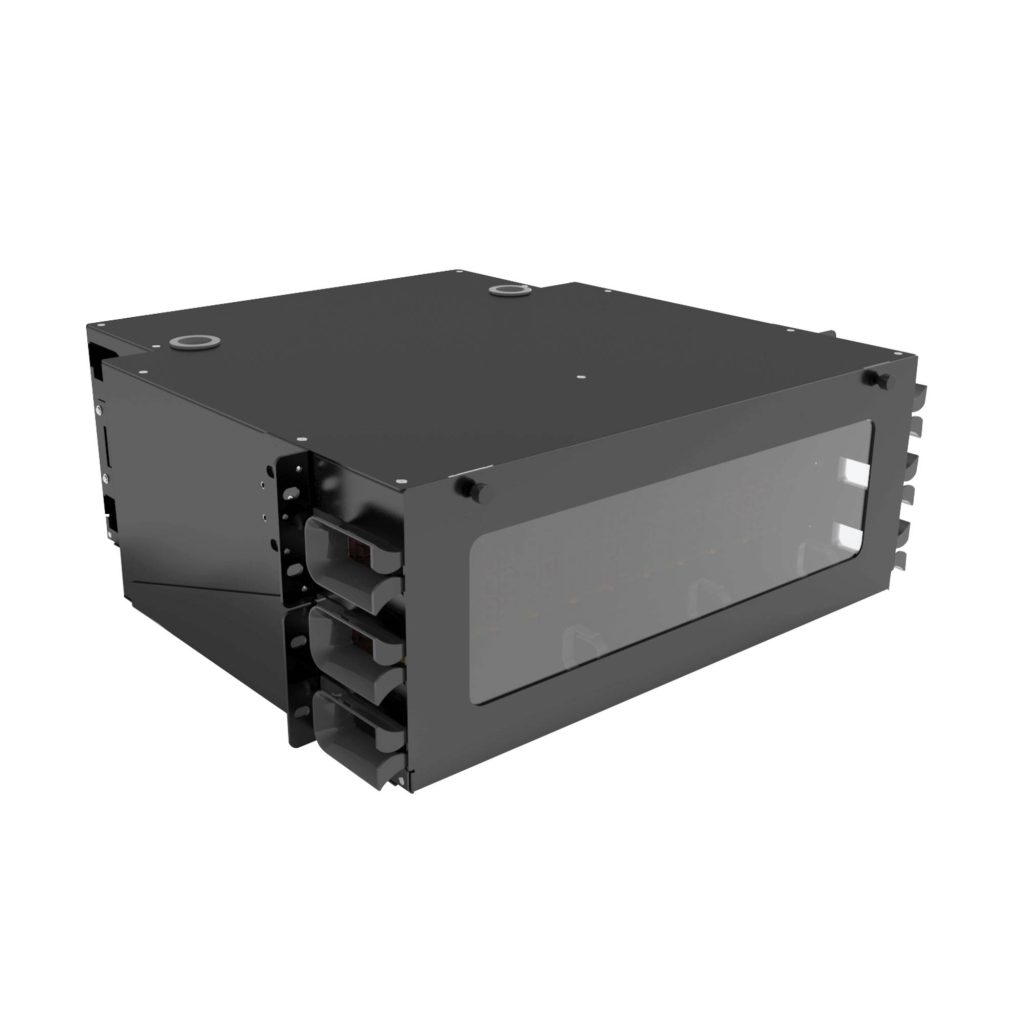

288fibers Rack Mount Optical Distribution Fiber(ODF) Panel Box
Description
Qualfiber supplies Fiber Optic Distribution Frame or Optical Patch Panel. Our rack mount ODF is in 3U designed and sliding structure. It is made of cold-rolled steel with electrostatic spraying.The ODF frame is loaded with adapter module cassettes.One adapter module cassette can be 12cores or 24cores and and is suitable for FC, SC, ST, LC, etc. adapters. 12pcs module cassettes cable be installed.The maximum fiber core is 288cores for our 3U rack mounted ODF box.It is easy to operate and maintain. The ODF box is widely used in distribution and end connection of indoor cables.
Structure:
Standard size, light weight and reasonable structure
Splice tray inside changeable
Can be used in 19”, 23” standard distribution frame
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface
24C, 36C, 48C, 72C, 96C optional, with or without fiber optic pigtails and adapters
Easy for management and operation
Customizable color and LOGO
Applications:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
