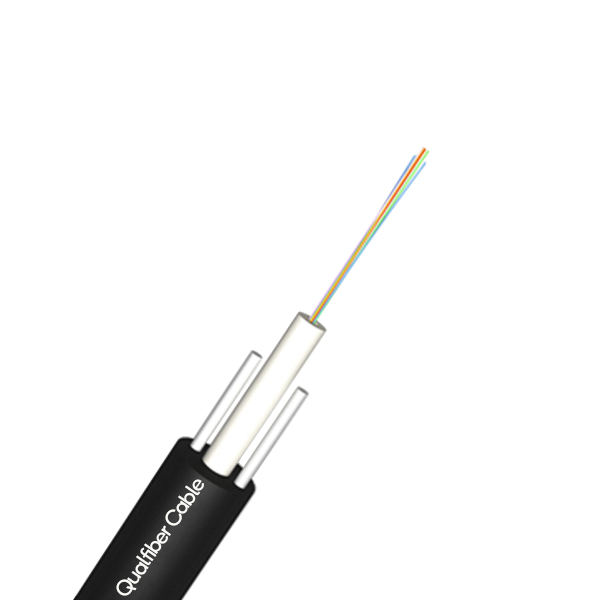

GYFXTY 12F G652D Non-metal Central Loose Tube Outdoor Cable
Structure details
| Fiber count | 12F | ||||||
| SM fiber | Fiber type | G652D | Concentricity error | ≤0.5um | |||
| MFD | 8.6～9.8um | Cladding non-circularity | ≤0.7% | ||||
| Cladding diameter | 125±1um | Fiber color | Standard spectrum | ||||
| Loose tube | Material | PBT | Color | Natural | |||
| Diameter | 1.8±0.1mm | Thickness | 0.3±0.05mm | ||||
| Tube filling | Material | Filling compound | |||||
| Strength member | Material | FRP | Diameter | 0.5mm*2 | |||
| Yarn | Material | Glass yarn | Qty | 600-F*8 | |||
| Out sheath | Material | HDPE | Color | Black | |||
| Diameter | 5.3±0.3mm | Thickness | 1.3±0.1mm | ||||
| Weight (km/kg) | 23±5kg | ||||||
Fiber Color
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color |  |
 |
 |
 |
 |
 |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color |  |
 |
 |
 |
 |
 |
Tube Color
.
Mechanical and environment performance
| Tensile strength | Long term（N） | 400N | |||||
| Short term（N） | 1000N | ||||||
| Crush load | Long term | 300N/100mm | |||||
| Short term | 1000N/100mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Impact strength | 10Nm | ||||||
| Installation Temperature | -30℃～+70℃ | ||||||
Fiber Performance
| Fiber attenuation | 1310um | ≤0.36dB/km | |||||
| 1550um | ≤0.22dB/km | ||||||
Package
Packing material: Wooden drum.
Packing length: 2km per drum.
Packing dimension: 600*600*430mm.
