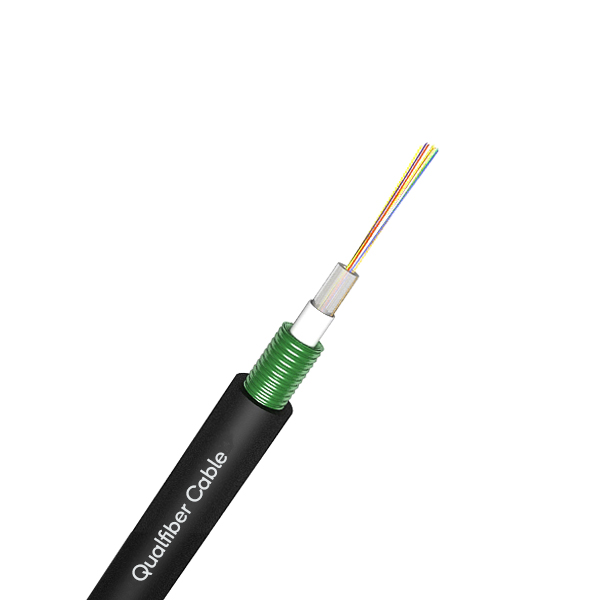

The GYXTS optical cable structure is a loose tube made of high modulus polyester material with single-mode fiber or multi-mode fiber, and the tube is filled with waterproof compound. The loose tube is provided with water-blocking material to ensure the longitudinal water seepage of the optical cable. After the steel wire is wrapped into the cable, the double-sided chrome-plated plastic-coated steel tape (PSP) is longitudinally wrapped, and then the polyethylene sheath is extruded.
Structure details
| Fiber count | 6F-24F | ||||||
| Loose tube | Material | PBT | Color | white | |||
| Diameter | 2.9±0.05mm (6-12F) | Thickness | 0.4±0.05mm (6-12F) | ||||
| 3.5±0.05mm (24F) | 0.5±0.05mm (24F) | ||||||
| Yarn | Material | water blocking glass yarn | Qty | 20 strands | |||
| Rip cords | Qty | (1110*2)*2 | Color | White | |||
| Armor | Material | Corrugated steel tape | Diameter | 0.21*20mm | |||
| Out sheath | Material | HDPE | Color | Black | |||
| Diameter | 7.4±0.2mm (6-12F) | Thickness | 1.2-1.3mm (6-12F) | ||||
| 8.5±0.3mm (24F) | 1.3±0.1mm (24F) | ||||||
| Net weight | 48±5kg/km | ||||||
Fiber Color
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color |  |
 |
 |
 |
 |
|
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color |  |
 |
 |
 |
 |
 |
| No. | 13 | 14 | 15 | 16 | 17 | 18 |
| Color |  |
 |
 |
 |
 |
 |
| No. | 19 | 20 | 21 | 22 | 23 | 24 |
| Color |  |
 |
 |
 |
 |
 |
Mechanical and environment performance
| Tensile strength | Max. | 2000N | |||||
| Crush load | Max. | 2000N/100mm | |||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Storage temperature | -50℃～+70℃ | ||||||
| Operating temperature | -40℃～+70℃ | ||||||
Fiber characteristics
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.36/0.24 | ≤3.0/1.5 | ≤3.0/1.5 | |||
| Cladding diameter | um | 125±1 | 125±1 | 125±1 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |||
Package
Packing material: Wooden drum.
Packing length: 2km per drum or customization.
