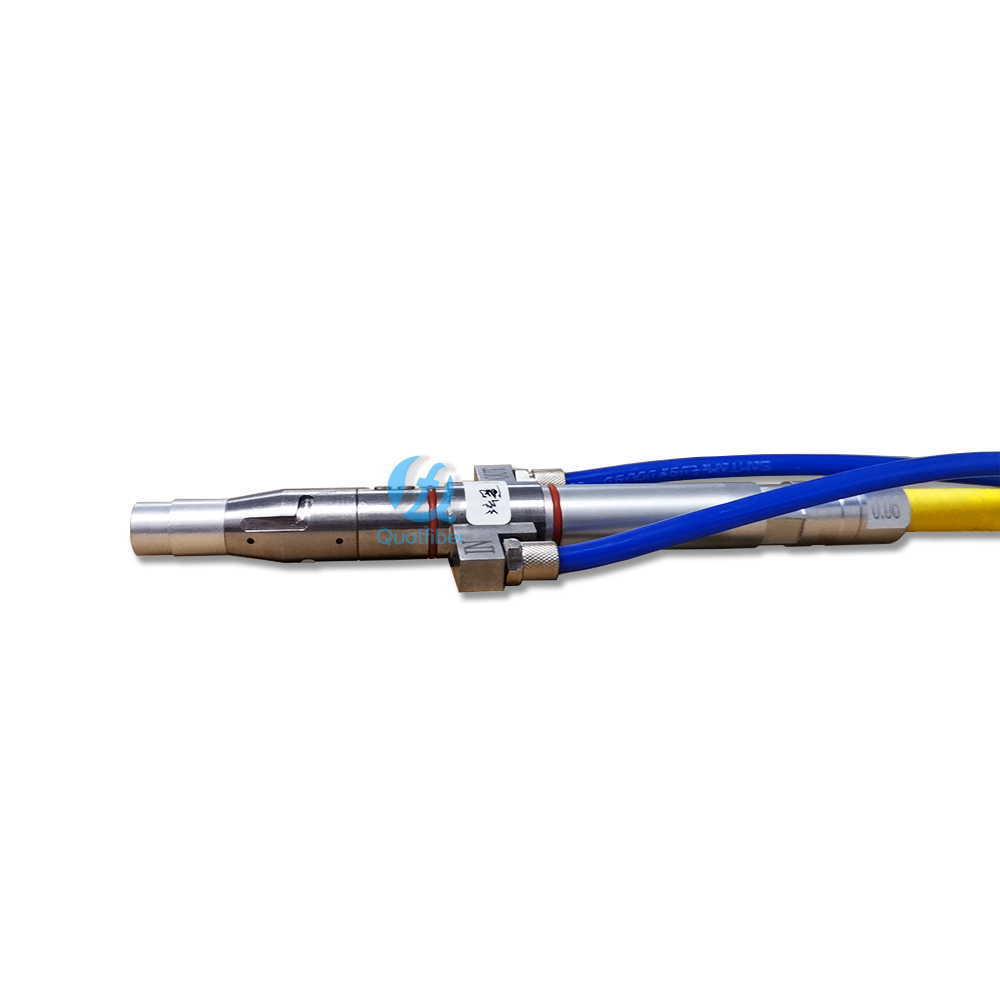

High Power Cable-Laser Output Caput (QBH) is an optical fiber output device for optical fiber expanding output, which can reduce power density. It is often used for metal cutting or welding.
High Power Cable-Laser Output Caput (QBH) is an optical fiber output device for optical fiber expanding output, which can reduce power density. It is often used for metal cutting or welding.
|
Item |
Specifications |
Min. |
Typ. |
Max. |
Unit |
Notes |
|
2.01 |
Laser wavelength |
900 |
– |
2000 |
nm |
|
|
2.02 |
Polarization |
Random |
PM Customizable |
|||
|
2.03 |
Operation regime |
CW |
||||
|
2.04 |
Signal insertion loss |
0.01 |
0.05 |
0.1 |
dB |
|
|
2.05 |
Fiber length |
1 |
15 |
30 |
m |
Customizable |
|
2.06 |
Power Handling |
1 |
2-5 |
12 |
kW |
|
|
2.07 |
Stripping power |
200 |
500 |
1000 |
W |
|
|
2.08 |
Fiber type |
20/400 DCF, NA:0.06/0.46 |
||||
|
25/400 DCF, NA:0.06/0.46 |
||||||
|
30/400 DCF, NA:0.06/0.46 |
||||||
|
50/70/360, NA:0.22/0.46 |
||||||
|
100/120/360, NA:0.22/0.46 |
||||||
|
200/220/360, NA:0.22/0.46 |
||||||
|
2.09 |
Operating temperature range |
0 |
+75 |
°C |
||
|
2.10 |
Storage temperature |
-40 |
+85 |
°C |
||
|
2.11 |
Cooling Method |
Reinforced water cooling |
||||
3.0 Mechanical specifications and drawings
|
Item |
Specifications |
Unit |
Notes |
|
|
3.01 |
Module’s Dimensions |
mm |
Water cooling |
|
|
|
||||
4.0 Ordering information
|
QBH-①-②-③-④/④ |
||
|
①；Fiber type |
②：Handling power |
③：Stripping power |
| D17 – 20/400 DCF, 0.06NAD07 – 25/400 DCF, 0.06NAD08 – 30/400 DCF, 0.06NAT00 –50/70/360, 0.22/0.46NAect. | 1.0 – 1kW1.5 – 1.5kW5.0 – 5kW10.0 – 10kWect. | 200 – 200W600 – 600W800 – 800Wect. |
|
④/④：Cable/Fiber length |
|
|
| 3.0 – 3.0m4.0 – 4.0m5.0 – 5.0mect. | ||
|
For example：QBH-D17-1.5-200-3.0/3.5 |
||
