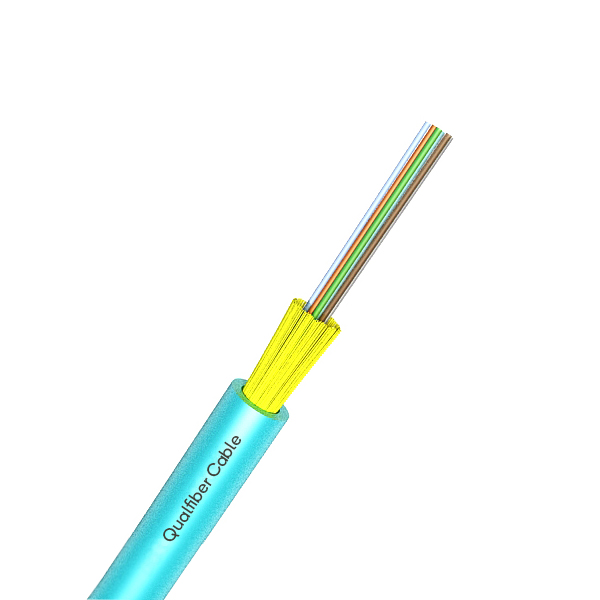

Mini Bare Fiber Distribution Fiber Optic Cable

Basic Information

Place of Origin:	China
Brand Name:	Qualfiber/OEM
Model Number:	GJFJV

Minimum Order Quantity:	5 Kilometer/Kilometers
Price:	$2.00 – $300.00 / Kilometers
Packaging Details:	Wooden drum
Supply Ability:	5000 Kilometer/Kilometers per Week

Fiber type SM G652SM G652DMM 50/125MM 62.5/125MM OM3-300

Product Detail

No. Of Fibers:	24-144	Number Of Conductors:	>= 10
Fiber Type:	SM:G652D MM:50/125 & 62.5/125	Temperature:	-20 To 60°C
Out Sheath:	LSZH/ PVC/ OFNR Jacket	Min Bending Radius(mm):	Long Term:10D ; Short Term: 20D
Model Number:	GJFJV	Application:	Indoor
Tensile Strength(N):	Long Term:1000; Short Term: 2000	Crush-load Max(N/100mm):	Long Term:1000; Short Term: 2000
Color:	Green Blue	Port:	Shenzhen
High Light:	direct burial fiber optic cable dielectric fiber optic cable

Mini Bare Fiber Distribution Fiber Optic Cable

Break-out indoor cable use simplex cables subunit. A fiber-reinforced plastic(FRP) locates in the center of the core as a non-metallic strength member. The subunits are stranded around the core. The cable is completed with a PVC or LSZH ( Low smoke, Zero halogen, Flame-retardant ) jacket.

Cable Mechanical characteristic

Items		Cable diameter	Weight
24 cores		10	54.00kg/km
48 cores		10	78.00kg/km
72 cores		11.5	90.00kg/km
96 cores		12.5	115.00kg/km
144 cores		14.5	135.00kg/km
Storage temperature(℃)		-20+60
Min Bending Radius(mm)	Long term	10D
Min Bending Radius(mm)	Short term	20D
Min allowable Tensile Strength(N)	Long term	1000
Min allowable Tensile Strength(N)	Short term	2000
Crush Load (N/100mm)	Long term	1000
Crush Load (N/100mm)	short term	2000

Tight buffer color

Qualfiber Optical Cable Tight_Buffer group 2

Fiber characteristic

Fiber style		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
attenuation		dB/km	0.36/0.23	0.34/0.22	3.0/1.0	—-	—-
Dispersion	1550nm	Ps/(nm*km)	—-	≤18	—-	—-	Dispersion
Dispersion	1625nm	Ps/(nm*km)	—-	≤22	—-	—-
Bandwith	850nm	MHZ.KM	—-	—-	≥400	≥160	Bandwith
Bandwith	1300nm	MHZ.KM	—-	—-	≥800	≥500
Zero dispersion wavelength		nm	1300-1324	≥1302, ≤1322	—-	—-	≥ 1295, ≤1320
Zero dispersion slope		nm	≤0.092	≤0.091	—-	—-	—-
PMD Maximum Individual Fiber		≤0.2	≤0.2	—-	—-	≤0.11
PMD Design Link Value		Ps(nm2*k m)	≤0.12	≤0.08	—-	—-	—-
Fibre cutoff wavelength λc		nm	≥ 1180, ≤1330	≥1180, ≤1330	—-	—-	—-
Cable shutoff wavelength λcc		nm	≤1260	≤1260	—-	—-	—-
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	—-	—-	—-
MFD	1550nm	um	10.4+/-0.8	10.4+/-0.8	—-	—-	—-
Numerical Aperture(NA)		—-	—-	0.200+/ -0.015	0.275+/-0. 015	0.200+/-0 .015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
