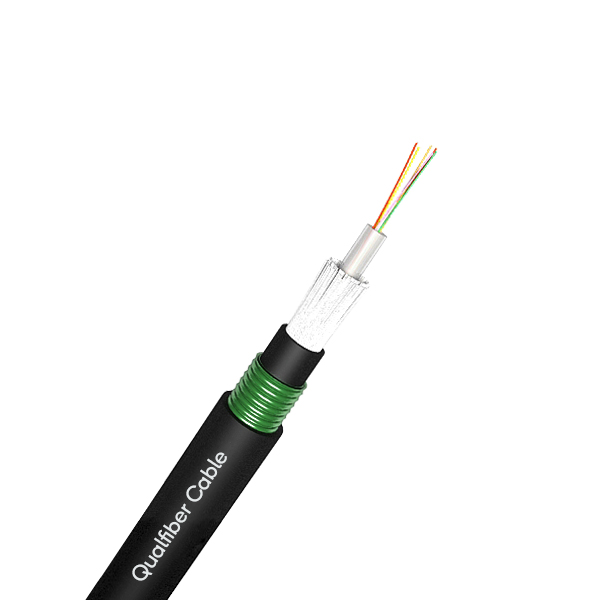

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking glass yarn. A corrugated steel tape is applied over the yarn. Two rip cords are located between the glass yan and the steel tape. Then the cable is completed with a high density polyethylene (HDPE) sheath.
Structure details
| Fiber count | 4F | ||||||
| Loose tube | Material | PBT | Color | white | |||
| Diameter | 2.5±0.05mm (6-12F) | Thickness | 0.4±0.05mm (6-12F) | ||||
| Yarn | Material | water blocking glass yarn | Qty | 600-W*10 | |||
| Inner sheath | Material | LSZH | Color | Black | |||
| Diameter | 5.5±0.2mm | Thickness | 1.2±0.1mm | ||||
| Armor | Material | Corrugated steel tape | Diameter | 0.21*24mm | |||
| Ripcord | Type | 1110*2 | Color | White | |||
| Out sheath | Material | LSZH | Color | Black | |||
| Diameter | 10.2±0.4mm | Thickness | 1.8±0.2mm | ||||
Fiber Color
| 4core Standard Colour Identification | ||||||||
| No. | 1 | 2 | 3 | 4 | ||||
| Color |  |
 |
 |
 |
||||
Mechanical and environment performance
| Tensile strength | Max. | 1000N | |||||
| Crush load | Max. | 2200N/100mm | |||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Operating temperature | -40℃～+70℃ | ||||||
Fiber characteristics
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.36/0.24 | ≤3.0/1.5 | ≤3.0/1.5 | |||
| Cladding diameter | um | 125±1 | 125±1 | 125±1 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |||
Package
Packing material: Wooden drum.
Packing length: 2km per drum or customization.
