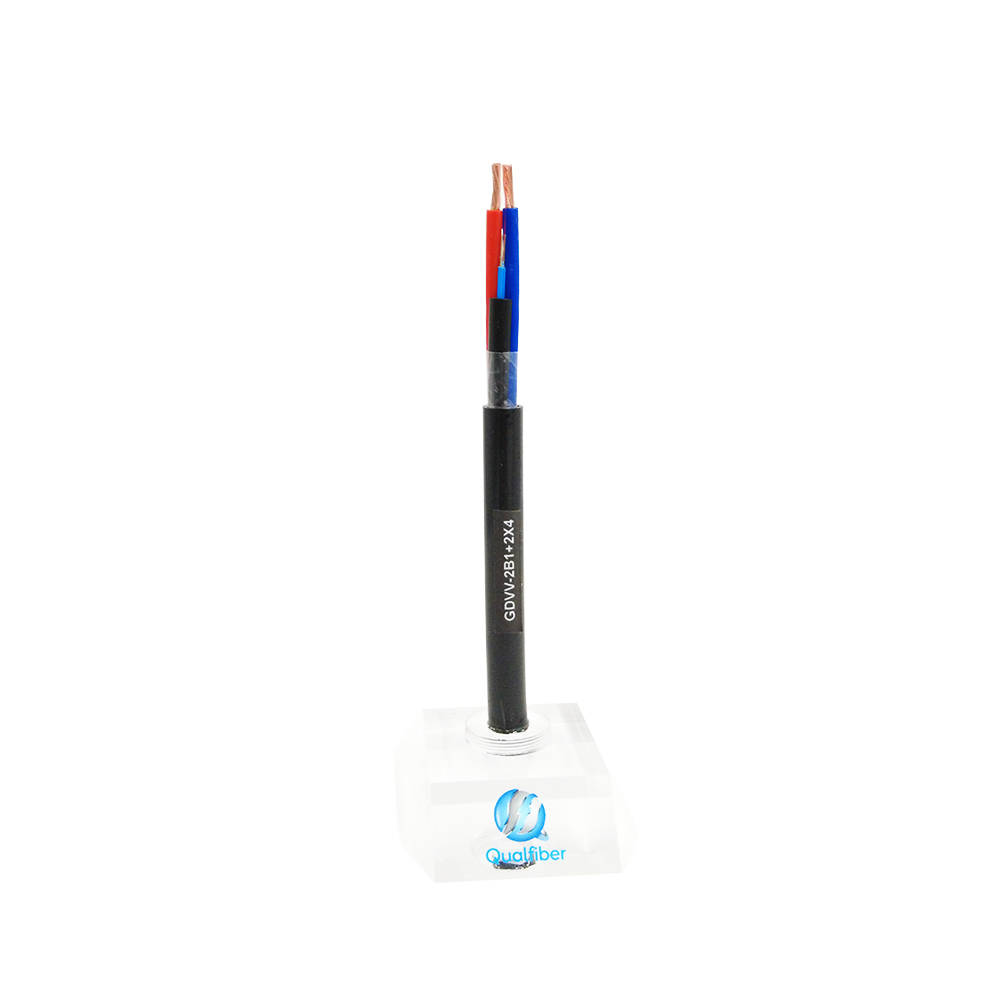

GDVV integrates optical transmission and power copper cable, hybrid fiber power cable can solve broadband access problems, equipment power supply, transmission transparent electricity meter data, report and charge electricity.
GDVV integrates optical transmission and power copper cable, hybrid fiber power cable can solve broadband access problems, equipment power supply, transmission transparent electricity meter data, report and charge electricity.
Product Specification:
Model Number: GDVV
Number of Conductors: 2
Conductor Material: Fiber and Copper
Fiber Type: G.657A2 or customized
Fiber count: 2-12 Cores
Copper count: customized
Strength member material: Steel wire coated with glue.
Sheath: HDPE LSZH
Voltage: 300/500V
Working temperature range: -40℃~80℃
Storage and transport temperature range: -40℃~60℃
Products Parameters:
| Item | Unit | Item | ||
| Drop cable | Cable dimension | / | 2.1(±0.1)*1.6(±0.1) | |
| Sub-power cable unit | Conductor | / | 30/0.25 | |
| Insulation | Material | / | PVC | |
| Nominal insulation thickness | mm | 0.7 | ||
| Min. insulation thickness | mm | 0.53 | ||
| Insulation diameter | mm | 3.1±0.3 | ||
| Outer sheath | Material | / | PVC | |
| Nominal insulation thickness | mm | 1 | ||
| Min. insulation thickness | mm | 0.8 | ||
| Finished diameter | mm | 9.0±0.3 | ||
| Reference weight | Kg/km | 118 | ||
| Rated voltage | V | 300/500 | ||
| Minimum bending radius | mm | 90mm | ||
Product Applications:
Indoor & Outdoor
