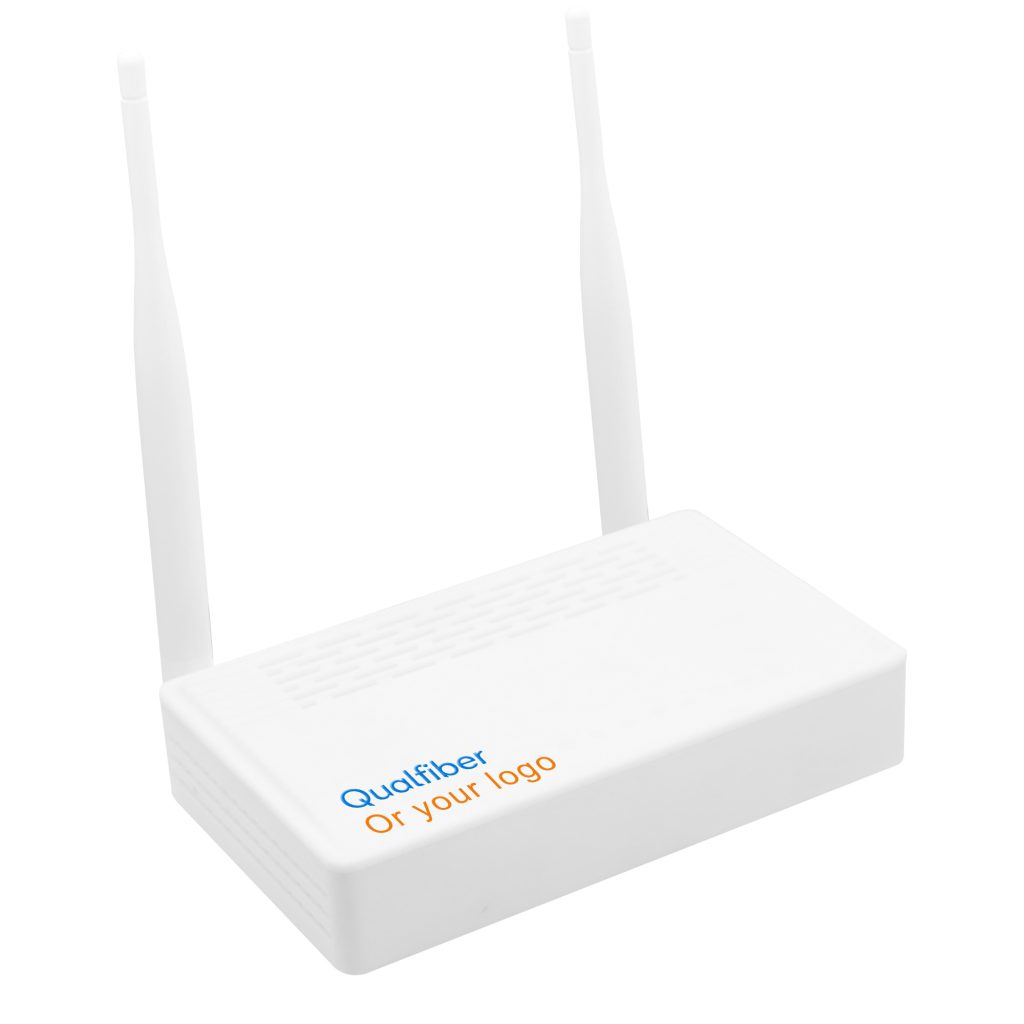

China QF-HE103WP 1GE+3FE+1POTS WIFI EPON Manufacture and Factory

1. Overview

1G3F+WIFI+POTS ONU is designed as HGU (Home Gateway Unit) in deferent FTTH solutions by Qualfiber, The carrier-class FTTH application provides data service access.
1G3F+WIFI+POTS ONU is based on mature and stable, cost-effective EPON technology. It can access to the major EPON OLT.
1G3F+WIFI+POTS ONU adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
1G3F+WIFI+POTS ONU is designed by Realtek chipset 9603C.

2. Functional Feature

Support EPON Mode
Support ONU auto-discovery/Link detection/remote upgrade of software
WAN connections support Route and Bridge mode
Route mode supports PPPoE/DHCP/ static IP
Support WIFI Interface and multiple SSID
Support QoS and DBA
Support port Isolation and port vlan configuration
Support Firewall function and IGMP snooping multicast feature
Support LAN IP and DHCP Server configuration
Support POTS interface for Voip Service
Support Port Forwarding and Loop-Detect
Support TR069 remote configuration and maintenance
Specialized design for system breakdown prevention to maintain stable system

3. Hardware Specification

Technical item	Details
PON Interface	1 EPON port (EPON PX20+ )
	Receiving sensitivity: ≤-28dBm
	Transmitting optical power: 0~+4dBm
	Transmission distance: 20KM
Wavelength	TX: 1310nm, RX: 1490nm
Optical Interface	SC/UPC Connector or customized
LAN Interface	1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
POTS Interface	1 FXS, RJ11 connector Support: G.711/G.723/G.726/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line testing according to GR-909
Wireless	Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: 78dBuV AGC range: 0~-15dBm MER: ≥32dB@-15dBm Modulation type: DSSS, CCK and OFDM Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
LED	9, For Status of POWER、LOS、PON、SYS、LAN1、LAN2、WIFI、WPS、Internet
Push-Button	3,For Function of Reset、WLAN、WPS
Operating Condition	Temperature: 0℃~+50℃
Operating Condition	Humidity: 10%～90%（non-condensing）
Storing Condition	Temperature: -30℃~+60℃
Storing Condition	Humidity: 10%~90%（non-condensing）
Power Supply	DC 12V/1A
Power Consumption	≤6W
Dimension	155mm×92mm×34mm（L×W×H）
Net Weight	0.24Kg

4. Panel lights Introduction

Pilot Lamp	Status	Description
PWR	On	The device is powered up.
PWR	Off	The device is powered down.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LOS	Blink	The device doses not receive optical signals.
LOS	Off	The device has received optical signal.
SYS	On	The device system runs normally.
SYS	Off	The device system runs abnormally.
INTERNET	Blink	The device network connection is normal.
INTERNET	Off	The device network connection is abnormal.
WIFI	On	The WIFI interface is up.
	Blink	The WIFI interface is sending or/and receiving data (ACT).
	Off	The WIFI interface is down.
FXS	On	Phone has registered to the SIP Server.
	Blink	Phone has registered and data transmission (ACT).
	Off	Phone registration is incorrect.
WPS	Blink	The WIFI interface is securely establishing a connection.
WPS	Off	The WIFI interface does not establish a secure connection.
LAN1~LAN2	On	Port (LANx) is connected properly (LINK).
	Blink	Port (LANx) is sending or/and receiving data (ACT).
	Off	Port (LANx) connection exception or not connected.

5. Application

Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
Typical Business：INTERNET、IPTV、IP Camera etc.

Ordering information

Product Name	Product Model	Descriptions
SFF Type EPON ONU	1G+3F+WIFI+POTS	1×10/100/1000Mbps Ethernet, 3 x 10/100Mbps Ethernet, 1 SC Connector, 1x RJ11 POTS 2.4GHz WIFI, Plastic Casing, External power supply adapter
