This XPON ONU is designed as HGU (Home Gateway Unit) in deferent FTTH solutions by QUALFIBER. It can switch automatically with EPON and GPON when it accesses to the EPON OLT or GPON OLT. Configuration flexibility and good quality of service (QoS) guarantee

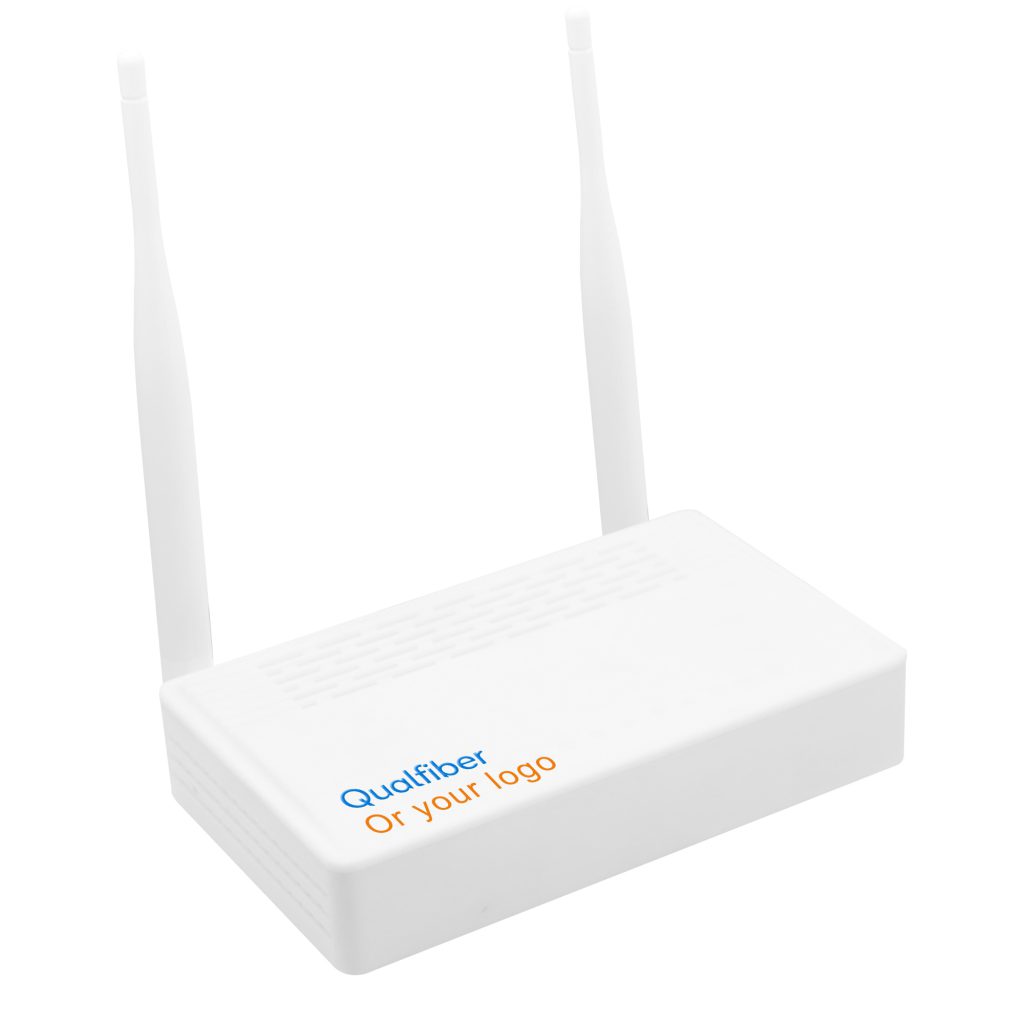

XPON ONT 1G3F+WIFI+CATV
This XPON ONU is designed as HGU (Home Gateway Unit) in deferent FTTH solutions by QUALFIBER. It can switch automatically with EPON and GPON when it accesses to the EPON OLT or GPON OLT. Configuration flexibility and good quality of service (QoS) guarantee
1. Overview
2. Functional Feature
3. Hardware Specification
| Technical item | Details |
| PON Interface | 2.5G GPON Class B+/C+/C++/C+++ & 1.25G EPON PX20+/PX20++/PX20+++) |
| Receiving sensitivity: ≤-27dBm | |
| Transmitting optical power: 0~+4dBm | |
| Transmission distance: 20KM | |
| Wavelength | Tx: 1310nm, Rx: 1490nm |
| Optical Interface | SC/APC Connector |
| LAN Interface | 1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| CATV Interface | RF, optical power : +2~-18dBm |
| Optical reflection loss: ≥45dB | |
| Optical receiving wavelength: 1550±10nm | |
| RF frequency range: 47~1000MHz, RF output impedance: 75Ω | |
| RF output level: 78dBuV | |
| AGC range: 0~-15dBm | |
| MER: ≥32dB@-15dBm | |
| Wireless | Compliant with IEEE802.11b/g/n, |
| Operating frequency: 2.400-2.4835GHz | |
| support MIMO, rate up to 300Mbps, | |
| 2T2R,2 external antenna 5dBi, | |
| Support: Multiple SSID | |
| Channel: Auto | |
| Modulation type: DSSS, CCK and OFDM | |
| Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | |
| LED | Status of POWER, LOS, PON, SYS, LAN1~LAN4 ,WIFI, WPS, Internet, Worn, Normal(CATV) |
| Push-Button | 3,For Function of Reset, WLAN, WPS |
| Operating Condition | Temperature: 0℃~+50℃ |
| Humidity: 10%～90%（non-condensing） | |
| Storing Condition | Temperature: -30℃~+60℃ |
| Humidity: 10%~90%（non-condensing） | |
| Power Supply | DC 12V/1A |
| Power Consumption | ≤6W |
| Dimension | 155mm×92mm×34mm（L×W×H） |
| Net Weight | 0.24Kg |
4. Panel lights Introduction
| Pilot Lamp | Status | Description |
| PWR | On | The device is powered up. |
| Off | The device is powered down. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LOS | Blink | The device doses not receive optical signals. |
| Off | The device has received optical signal. | |
| SYS | On | The device system runs normally. |
| Off | The device system runs abnormally. | |
| INTERNET | Blink | The device network connection is normal. |
| Off | The device network connection is abnormal. | |
| WIFI | On | The WIFI interface is up. |
| Blink | The WIFI interface is sending or/and receiving data (ACT). | |
| Off | The WIFI interface is down. | |
| WPS | Blink | The WIFI interface is securely establishing a connection. |
| Off | The WIFI interface does not establish a secure connection. | |
| LAN1~LAN4 | On | Port (LANx) is connected properly (LINK). |
| Blink | Port (LANx) is sending or/and receiving data (ACT). | |
| Off | Port (LANx) connection exception or not connected. | |
| Worn (CATV) |
On | Input optical power is higher than 3dbm or lower than -13dbm |
| Off | Input optical power is between -13dbm and 3dbm | |
| Normal (CATV) |
On | Input optical power is between -13dbm and 3dbm |
| Off | Input optical power is higher than 3dbm or lower than -13dbm |
5. Application
Figure: All function Optional Application Diagram
6. Ordering information
| Product Name | Product Model | Descriptions |
| XPON ONU 1G3F+WIFI+CATV | QF-HX103WC | 1×10/100/1000Mbps Ethernet, 3 x 10/100Mbps Ethernet , 1 SC/APC Connector, 1x CATV RF port, 2.4GHz WIFI, Plastic Casing, External power supply adapter |
Contact us:
Qualfiber Technology Co., Ltd
Email to us: sales@qualfiber.com
Website: https://www.qualfiber.com
Specifications are subject to change without notice.
