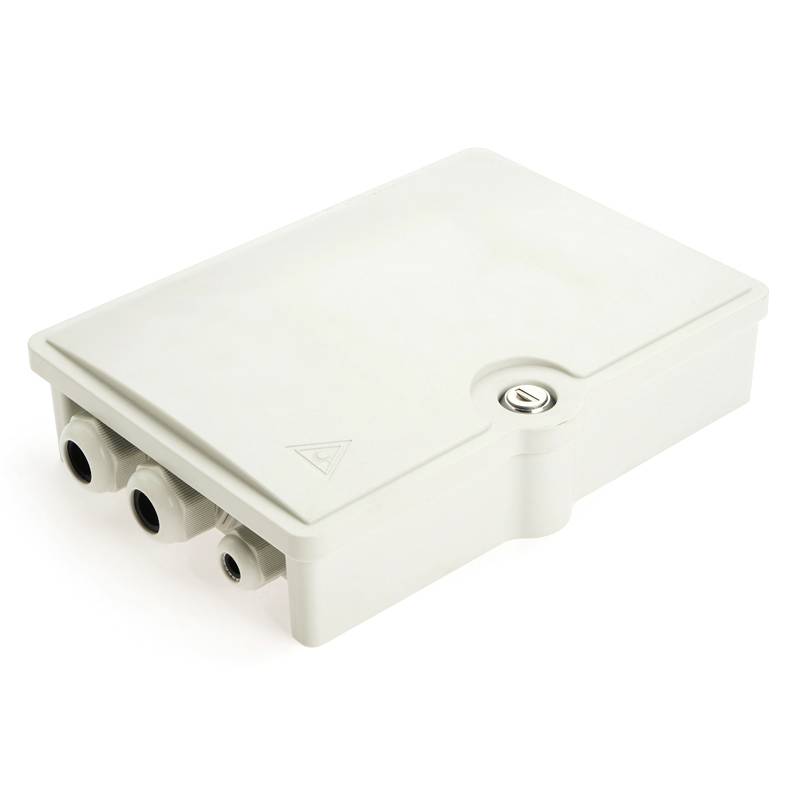

QF62DW-3 fiber optic terminal box provides three types for your selection. It belongs to the FTTH product, which is made of polymer plastic. Long service life.
QF62DW-3 fiber optic terminal box provides three types for your selection. It belongs to the FTTH product, which is made of polymer plastic. Long service life.
Product Details
1. Specification: φ12 cable termination and “8” figure orφ3 soft cable.
2. The box is in favor of 1 piece of 1core splice tray. Max capacity is 24F. 8F, 12F, and 24F are available.
3. Applicable for 1:8 SC or 1:16 LC micro type splitter, also can be installed with 6 pieces of SC duplex or LC four cores adapters. LC could be mounted up to 24F cables, SC could be mounted up to 12F cables.
4. It adopts the way of wall mount installation, can be opened repeatedly.
5. Flip structure, anti-thief by key. Small size with full function, easy to use.
6. Special for FTTH indoor termination obtain many new practical patents.
Product parameters
| Type | QF62DW-3 | Size(mm) | 258X186X61 |
| Protection grade | IP55 | Max capacity | 24F |
Ordering guide
| Type | size(mm) | weight(Kg) | Inner carton size(mm) | Out carton size(mm) |
| QF62DW-3 | 258X186X61 | 0.9-1.0 | 275x65x196 (1PCS) | 570x415x355(20PCS) |
