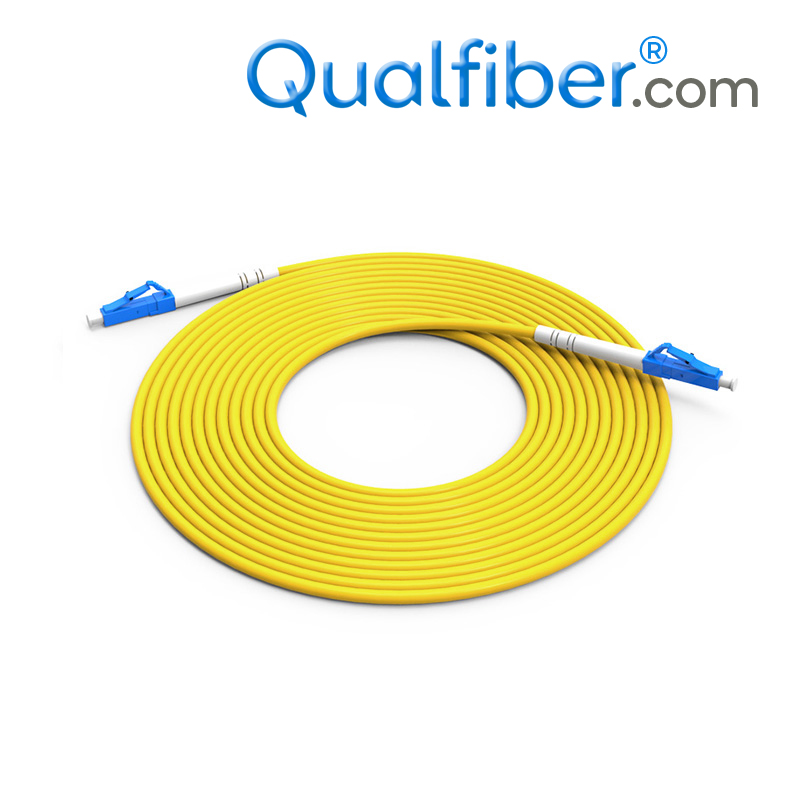

Optical patch Cord and pigtail is the basic parts for optical transmission. They are consist of fiber optic cable and terminated connector. Qualfiber has strong capacity and experience to support any large demand.
Application |
Characteristics |
|
| 1.Machine room 2.FTTH 3.Area network 4.Test equipment 5.National defense 6.FO sensor 7.Light communication system 8.The common antenna TV system |
1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA 2. Ferrule end-face: PC, UPC, APC 3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um) 4. Cable Quantity: Simplex, duplex or customized 5. Cable Diameter: 3.0mm, 2.0mm, 0.9mm 6. Cable Length: 1, 2, 3 meter or customized 7. Cable type: PVC, LSZH, OM3, OM4, OFNR, OFNP, Plenum |
Features
1.Low insertion loss and high return loss.
2.High reliability and stability.
3.High tensile and bending performance.
Color Guidance (What’s the difference of OM1-5?)
| OM1/OM2 | OM3/OM4 | OM5 | Single-mode | Customized | |
|---|---|---|---|---|---|
| Picture |  |
 |
 |
 |
yes |
| Color | Orange | Aqua | Green | Yellow | Any Color |
| Singlemode | OM1-5 | APC | Customized | |
|---|---|---|---|---|
| Picture |  |
 |
 |
yes |
| Color | Blue | Gray | Green | Any Color |
Specific Details
|
Item
|
Unit | SM | MM | ||||
| PC | UPC | APC | PC | ||||
| Insertion loss | dB | ≤0.20 | |||||
| Max. Insertion loss | dB | ≤0.30 | |||||
| Repeat-ability | dB | ≤0.10 | |||||
| Changeability | dB | ≤0.20 | |||||
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥35 | ||
| Operation Temperature | ℃ | -40 ~ +85 | |||||
| Storage temperature | ℃ | -40 ~ +85 | |||||
| Fiber type | um | 9/125 | 50/125, 62.5/125 | ||||
| Core number | Single or dual fiber | ||||||
| Durability | >1000times | ||||||
