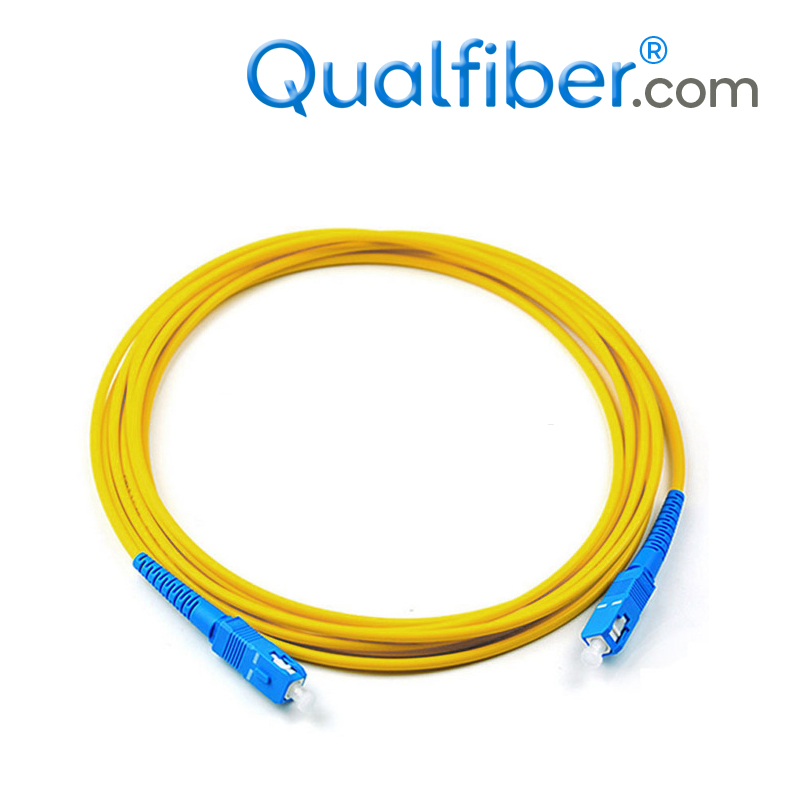

Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.
Application |
Characteristics |
|
| 1. Communication room 2. FTTH(SC-PLC, SC-ONU) 3. LAN(Local Area Network) 4. Optical fiber connected and transmitted equipment 5. Defense combat readiness 6. FOS (Fiber Optic Sensor) 7. Telecommunication system 8. CATV (Cable Television) 9. Computer fiber networks and fiber test equipment 10. Fiber Optic Communication System |
1. Connector type: SC-SC 2. Ferrule End-face: PC, UPC, APC,FLAT 3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)，OM1,OM2,OM3,OM4,OM5 4. Cable Quantity: Simplex 5. Cable Diameter: 3.0mm, 2.0mm, 0.9mm 6. Cable Length: 1, 2, 3, 7, 15, 30 meters or customized 7. Cable type: Material(PVC, LSZH, OFNR, OFNP, Plenum.etc) Color (OM1/OM2, OM3/OM4, OM5, Singlemode |
Features
1.Low insertion loss and high return loss. 2.High reliability and stability. 3.High tensile and bending performance.
Color Guidance (What’s the difference of OM1-5?)
| OM1/OM2 | OM3/OM4 | OM5 | Single-mode | Customized | |
|---|---|---|---|---|---|
| Picture |  |
 |
 |
 |
yes |
| Color | Orange | Aqua | Green | Yellow | Any Color |
| Singlemode | OM1-5 | APC | Customized | |
|---|---|---|---|---|
| Picture |  |
 |
 |
yes |
| Color | Blue | Gray | Green | Any Color |
