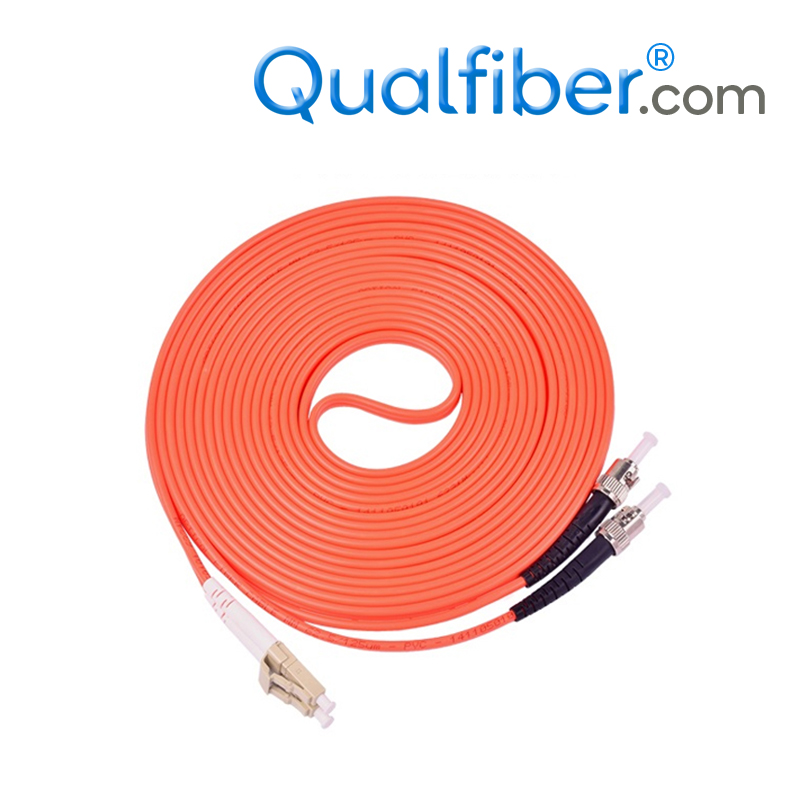

High performance optical pigtails &patch cords are a defining factor in ensuring any network performs to the highest level. Qualfiber offers an extensive range of optical pigtails for use in FTTX, telecommunications, data communications and CATV applications. Pigtails & patch cords can be supplied in a variety of lengths, colors and with a variety of different connector types. Different fiber types and cable diameters are also available on request.
Application
1.Gigabit Ethernet
2.Active device termination
3.Telecommunication networks
4.Video
5.Multimedia
6.Premise installations
7.Local area networks
8.FTTH and FTTX applications
9.CATV
Characteristics
1.Low insertion loss and back reflection loss
2.Good echangeability
3.Good Durability
4.High temperature stability.
5.Standard: Telcordia GR-326-CORE
6.Precise connector
7.Excellent mechanical capability
| Item | Unit | SM | MM | ||
| PC | UPC | APC | PC | ||
| Insertion loss | dB | ≤0.20 | |||
| Max. Insertion loss | dB | ≤0.30 | |||
| Repeat-ability | dB | ≤0.10 | |||
| Changeability | dB | ≤0.20 | |||
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥35 |
| Operation Temperature | ℃ | -40∽+85 | |||
| Storage temperature | ℃ | -40∽+85 | |||
| Fiber type | um | 9/125 | 50/125,62.5/125 | ||
| Core number | Single or dual fiber | ||||
| Durability | >1000times | ||||
