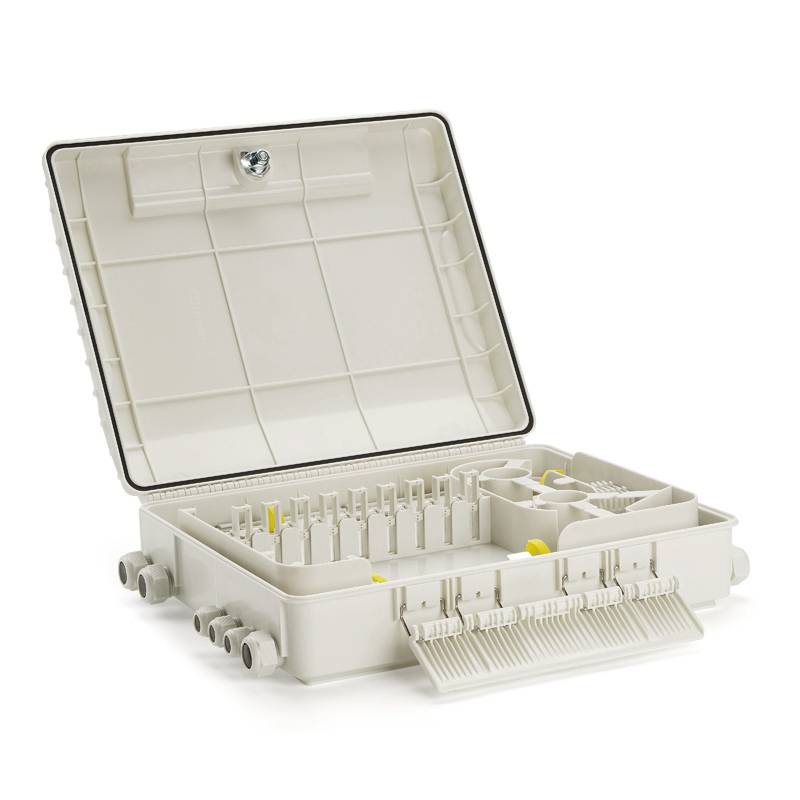

QF-KSW-48 Series 48 core wall mounting fiber distribution box includes of three products, For example, QF-KSW-48A, QF-KSW-48B, QF-KSW-48E, Fixed protection device, has a good sealing effect, stable characteristics.
QF-KSW-48 Series 48 core wall mounting fiber distribution box includes of three products, For example, QF-KSW-48A, QF-KSW-48B, QF-KSW-48E, Fixed protection device, has a good sealing effect, stable characteristics.
Product Details
1. Applicable for 4pcs Φ10-15 distribution cable,8 figure or Φ3 soft cable, can be up and down in and out of the cable.
2. Single-core max capacity of 48 core.
3. Splitter: QF-KSW-48B can be installed with 4*1:4 or 1:8 splitter,2*1:16 splitter,1*1:32 splitter.
4. Adapters: installed FC or SC adapters, capacity 48F, using for QF-KSW-48A and QF-KSW-48E.
5. Pole-mounting and wall-mounting two ways make installation very convenient. Used for indoor and outdoor installation
6. Card button can make the box body more tighten closely, but also protect the lock.
7. Equipped with splice protector, splitter fixing kit.
Note: Picture1~3 is common of them, picture 4~5 is QF-KSW-48A details, picture 6~7 is QF-KSW-48B details, picture 8~9 is QF-KSW-48E details.
Product parameters
| Type | QF-KSW-48A/B/E | Size(mm) | 504X374X134 |
| Protection grade | IP55 | Max capacity | 48F |
Ordering guide
| Type | Size(mm) | Weight(Kg) | Inner carton size(mm) | Out carton size(mm) |
| QF-KSW-48A/B/F | 504X374X134 | 4.8-5.2 | 550X405X160 (1PCS) | 565X420X540 (3PCS) |
| Product Name: | FTTH Distribution Terminal Box | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Color: | White | Material: | SMC |
| Feature: | Waterproof & Dustproof | Seal: | Lock Panel With Pressure |
| Environment: | Outdoor | Installation: | Wall Mounting |
| Condition: | 100% Original Brand | PLC Splitter(not Included) Inside: | Mini/steel Tube |
| High Light: |
fiber optic distribution box, wall mount fiber distribution box |
||
