Wholesale Ubiquiti Wifi 6 – 1Ge Lan CATV xPON ONU Support RF for GPON and EPON network – Qualfiber Detail:
| Technical Item | Details |
| Pon interface | 1 GPON/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm, Downstream: 1490nmSC/APC connectorReceiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBmTransmission distance: 20KM |
| LAN interface | 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector |
| CATV Interface | RF, optical power : +2~-18dBm Optical reflection loss: ≥45dBOptical receiving wavelength: 1550±10nmRF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV（-7dBm optical input）AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBmMER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
| LED | 6 LED, For Status of POWER, LOS, PON, LAN, NORMAL, WARN |
| Push-Button | 2, for Function of Power on/off, Reset |
| Operating condition | Temperature : 0℃～50℃Humidity :10%～90%（non-condensing） |
| Storing Condition | Temperature : -40℃～+60℃Humidity :10%～90%（non-condensing） |
| Power supply | DC 12V/1A |
| Power Consumption | <3W |
| Net Weight | <0.2kg |
Panel lights and Introduction
| Pilot | Status | Description |
| POWER | On | The device is powered up. |
| Off | The device is powered down. | |
| LOS | Blink | The device doses not receive optical signals. |
| Off | The device has received optical signal. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LAN | On | Port is connected properly (LINK). |
| Blink | Port is sending or/and receiving data (ACT). | |
| Off | Port connection exception or not connected. | |
| NORMAL | On | Input optical power is between -18dbm and 2dBm |
| Off | Input optical power is higher than 3dbm or lower than -18dBm | |
| WARN | On | Input optical power is higher than 2dBm or lower than -18dBm |
| Off | Input optical power is between -18dBm and 2dBm |
Application
Ordering information
|
Product Name |
Product Model |
Descriptions |
|
1GE+CATV XPON |
PN: QF-CX010C Series: CX0101R001 |
10/100/1000Mbps auto adaptive Ethernet（RJ45）,1 SC/APC Connector, 1 RF Connector, Plastic Casing, External power supply adapter |
|
1GE+CATV EPON |
PN: QF-CE010C Series: CE0101R001 |
10/100/1000Mbps auto adaptive Ethernet（RJ45）,1 SC/APC Connector, 1 RF Connector, Plastic Casing, External power supply adapter |

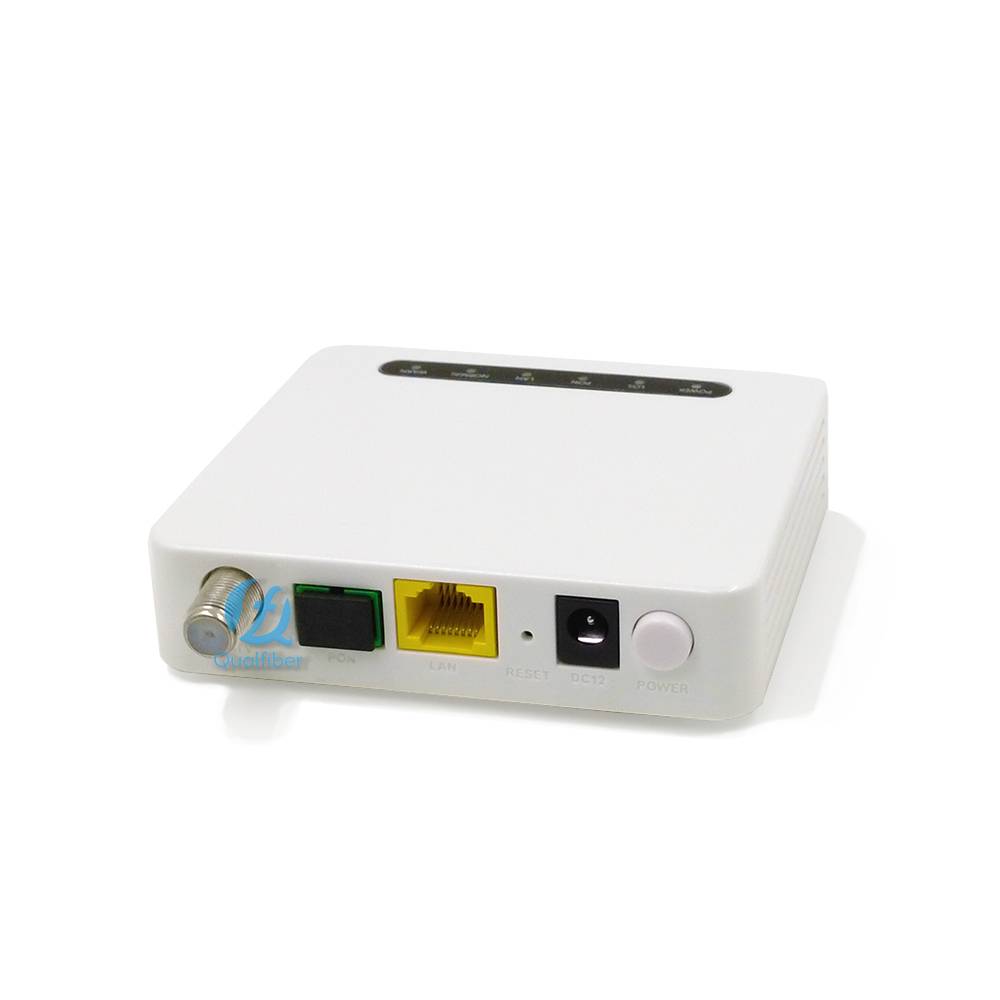

Product detail pictures:
