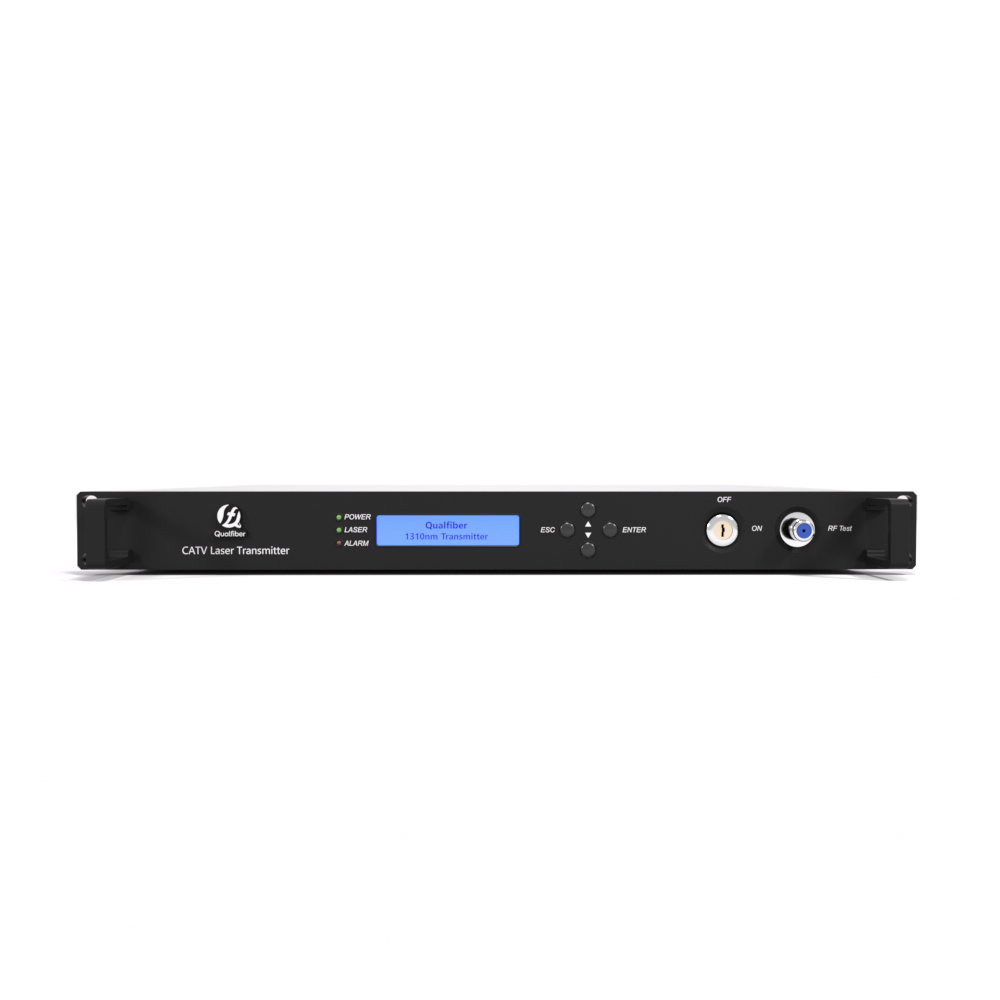

Qualfiber 1310nm optical transmitter is a high performance, high reliability and excellent cost performance. For 10km and 25km transmitter we build in Fujitsu and Ortel components. It can be used in a wide range of applications, such as long-distance digital and analog signal communication applications include secondary CATV trunks and distribution networks, CWDM/DWDM systems, fiber optic sensing and security monitoring systems. FTTH network construction, CATV extended network signal transmission through the low loss 1310nm single mode fiber optic cable , used with high-power optical amplifier EDFA.
Qualfiber 1310nm optical transmitter is a high performance, high reliability and excellent cost performance. For 10km and 25km transmitter we build in Fujitsu and Ortel components. It can be used in a wide range of applications, such as long-distance digital and analog signal communication applications include secondary CATV trunks and distribution networks, CWDM/DWDM systems, fiber optic sensing and security monitoring systems. FTTH network construction, CATV extended network signal transmission through the low loss 1310nm single mode fiber optic cable , used with high-power optical amplifier EDFA.
FEATURES
● 2 Independent modular RF driver
● 47-1000Mhz working bandwidth
● LCD screen on the front panel show brief information of the status of the equipment
● Automatic laser modulation (MOI) control, AGC & MGC
● Double power supply, support SNMP management
● Automatically control of operating temperature
TECHNIQUE INDEX
| Item | Unit | Parameters |
| CATV working wavelength | nm | 1300~1320 |
| Number of output ports | port | 1/2 customized |
| Transmission distance | km | 5-10 or 10-25 |
| Output power | dB | 2-32 |
| Reflection loss | dBm | ≥55 |
| Working broadband | MHz | 47-1000 |
| Flatness | dB | ≤±0.75 |
| RF input level | dBuV | 80±5（AGC） |
| AGC control range | dBm | ±10 |
| MGC control range | dBm | ±10 |
| Test channel | PAL-D/60CH, NTSC80CH or customized | |
| RF detection | db | 0±1 |
| CNR | db | ≥ 51 |
| CTB | db | ≤ -67 |
| CSO | db | ≤ -57 |
| RF connector | F-Female | |
| Connector type | FC/APC, SC/APC or customized | |
| SNMP | RJ45 | |
| Power supply voltage | V | 220VAC or -48VDC |
| Power consumption | W | ≤50（single power supply） |
| Operating Temperature | ℃ | -5~65 |
| Storage temperature | ℃ | -40~80 |
| Size | inches | 1U(19*14.7*1.75) |
