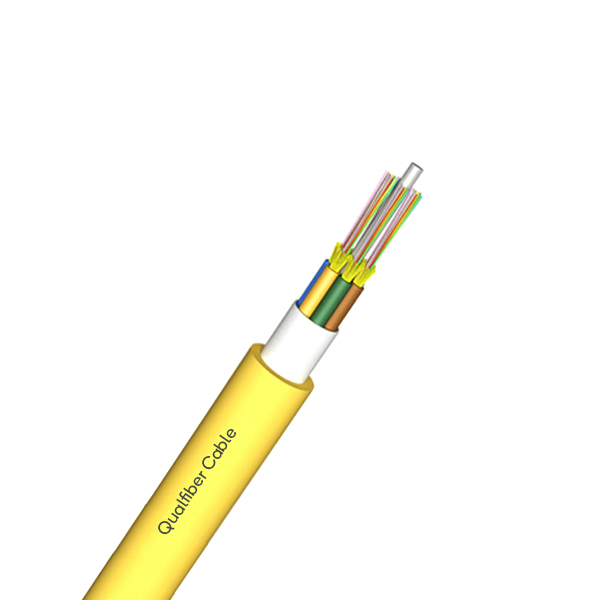

Multi Purpose Breakout cable uses bare fiber as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a LSZH (Low Smoke, Zero halogen, Flame-retardant) jacket.
Cable construction details
| No.of fiber | 144F | |||||
| SM fiber | Fiber type | SM G652D | Concentricity error | ≤0.5um | ||
| MFD | 8.6～9.8um | Cladding non-circularity | ≤0.7% | |||
| Cladding diameter | 124.8±0.7um | Fiber color | standard spectrum | |||
| Inner sheath | Material | Bare fiber | Colore | standard spectrum | ||
| LSZH | Diameter | 2.4±0.05mm | ||||
| Kevlar yarn | Type | 1000D*4/subunit | ||||
| Stranding | Wrapping tape | Type | 0.18*24mm | |||
| FRP | Diameter | 2.0mm | ||||
| LSZH layer | Thickness | 2.5mm | ||||
| Out sheath | LSZH | Diameter | 15.0±0.5mm | |||
| Thickness | 1.8±0.1mm | |||||
| Ripcord | Type | 1110*2*1 | ||||
Loose tube Color
Bare fiber color
| Tensile strength | Long term（N） | 400N | ||||
| Short term（N） | 1320N | |||||
| Crush load | Long term（N） | 300N/100mm | ||||
| Short term（N） | 1000N/100mm | |||||
| Bending radius | Dynamic | 20D | ||||
| Static | 10D | |||||
| Temperature | -20℃～+70℃ | |||||
Cable mechanical and environment characteristics
Fiber characteristics
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.36/0.23 | ≤3.0/1.0 | ≤3.0/1.0 | |||
| Cladding diameter | um | 125±1 | 125±1 | 125±1 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |||
