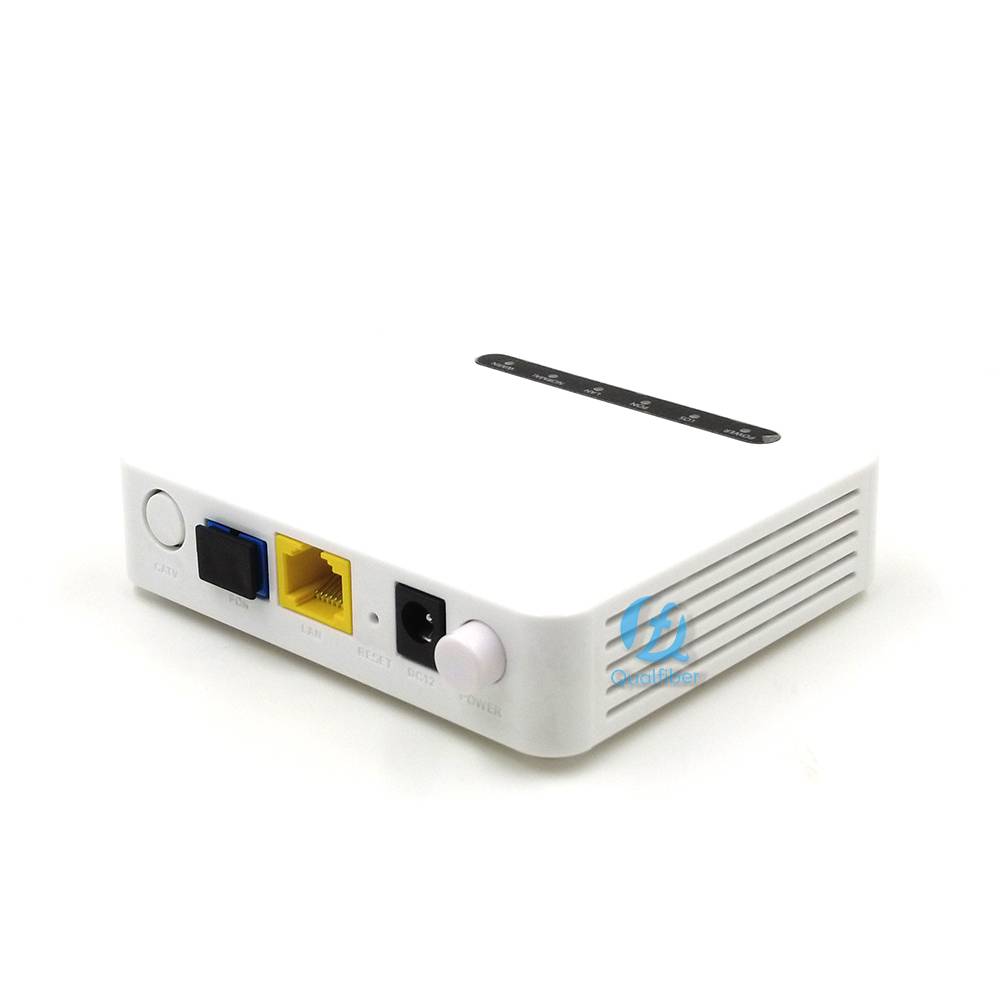

1Ge LAN Port xPON ONU Bridge of FTTH and UTP HGU for GPON and EPON ONT

1Ge xPON ONU was designed as the most cost-effective for FTTx networks, 1Ge LAN with xPON(for both GPON and EPON networks), 1 SC/APC or 1 SC/UPC port for the bridge of ftth to UTP networks, 1 power supply ports and 1 on/off switch for easy management. it saved many cost on components and chip’s requirement, the end-users can free extend to other LAN devices, such as high-performance routers, Mesh router, and switches, etc.

Model Name: QF-CX010

Model Series No. CX0001R001

Product Detail

Overview

1GE ONU is designed as HGU (Home Gateway Unit) in different FTTH solutions; the carrier-class
FTTH application provides data service access.
1GE ONU is based on mature and stable, cost-effective XPON technology. It can switch
automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
1GE ONU adopts high reliability, easy management, configuration flexibility and good quality of
service (QoS) guarantees to meet the technical performance of the module of China Telecom
EPON CTC3.0.
1GE ONU is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
1GE ONU is designed by Realtek chipset 9601D

Feature

Supports Dual Mode (can access GPON/EPON OLT).
Supports SFU and HGU of EPON CTC 3.0 standard
Supports GPON G.984/G.988 standards and IEEE802.3ah.
Support NAT, Firewall function.
Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
Support port mode of vlan configuration
Support LAN IP and DHCP Server configuration
Support TR069 Remote Configuration and maintenance
Support Route PPPoE/DHCP/Static IP and Bridge mixed mode
Support IPv4/IPv6 dual stack
Support IGMPv2, IGMPv3, MLDv1, MLDv2, IGMP snooping/proxy
Compatible with popular OLT(Huawei, ZTE, FiberHome…)

Specification

Technical Item	Details
PON interface	1 GPON/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm,Downstream: 1490nmSC/UPC connectorReceiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBmTransmission distance: 20KM
LAN interface	10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector
LED	4 LED, For Status of POWER、LOS、PON、LAN
Push-Button	2, for Function of Power on/off, Reset
Operating condition	Temperature : 0℃～+50℃Humidity :10%～90%（non-condensing）
Storing Condition	Temperature : -40℃～+60℃Humidity :10%～90%（non-condensing）
Power supply	DC 12V/1A
Power Consumption	<3W
Net Weight	<0.2kg

Panel lights and Introduction

Pilot	Status	Description
POWER	On	The device is powered up.
POWER	Off	The device is powered down.
LOS	Blink	The device doses not receive optical signals.
LOS	Off	The device has received optical signal.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LAN	On	Port is connected properly (LINK).
	Blink	Port is sending or/and receiving data (ACT).
	Off	Port connection exception or not connected.

Application

Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
Typical Service：Broadband Internet access

Ordering information

Product Name	Product Model	Descriptions
1GE XPON	PN:QF-CX010Series:CX0001R001	10/100/1000Mbps auto adaptive Ethernet（RJ45）,1 SC/UPC(if APC, please note) Connector, Plastic Casing, External power supply adapter(please note standard of it)
1GE EPON	PN:QF-CX010Series:CE0001R001	10/100/1000Mbps auto adaptive Ethernet（RJ45）,1 SC/UPC(if APC, please note) Connector, Plastic Casing, External power supply adapter(please note standard of it)
