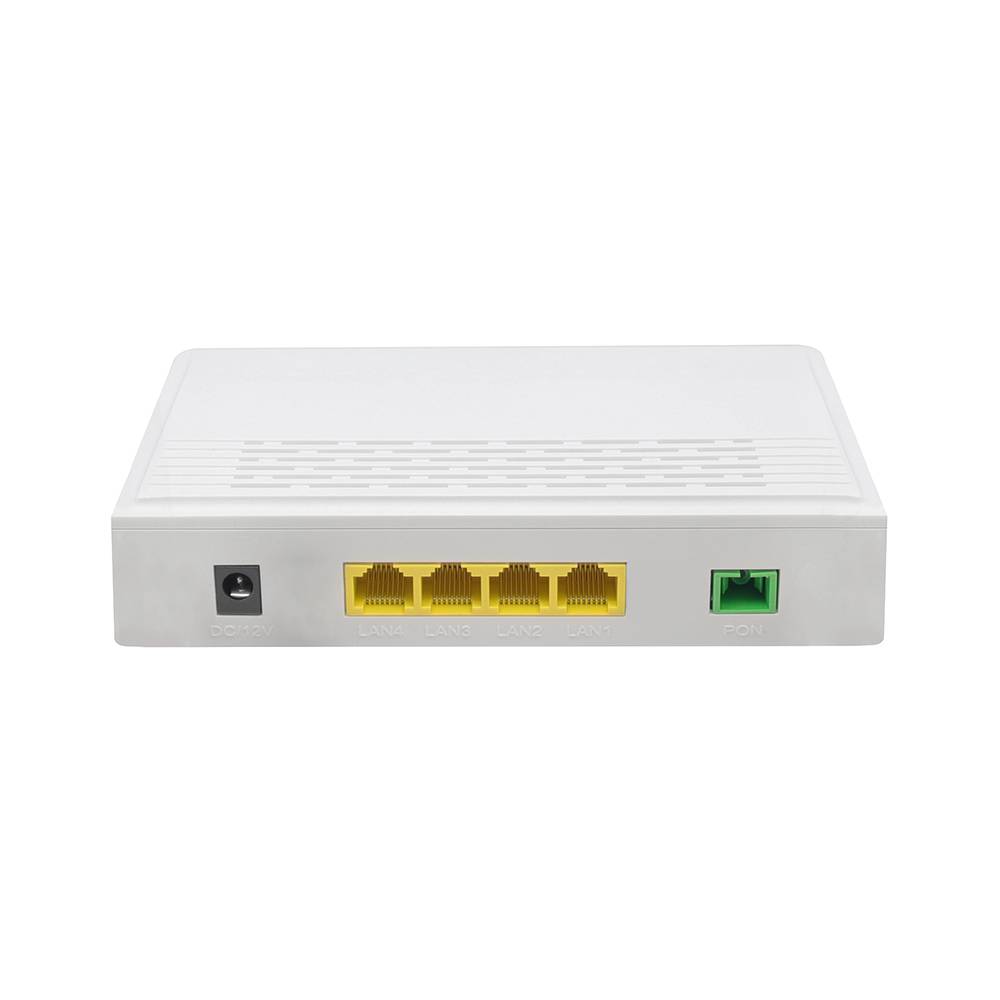

China xPON ONU QF-HX103 1GE+3FE LAN XPON ONT Manufacture and Factory

Product Detail

1. Overview

1G3F+WIFI series is designed as HGU(Home Gateway Unit) in deferent FTTH solutions by Qualfiber, The carrier-class FTTH application provides data service access.
1G3F+WIFI series is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT.
1G3F+WIFI series adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3,0 and GPON Standard of ITU-TG.984.X
1G3F+WIFI series is designed by Realtek chipset.

2. Functional Feature

3. Hardware Specification

Technical item	Details
PON Interface	2.5G GPON Class B+/C+/C++/C+++ & 1.25G EPON PX20+/PX20++/PX20+++)
	Receiving sensitivity: ≤-27dBm
	Transmitting optical power: 0~+4dBm
	Transmission distance: 20KM
Wavelength	Tx: 1310nm, Rx: 1490nm
Optical Interface	SC/APC Connector
LAN Interface	1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless	Compliant with IEEE802.11b/g/n,
	Operating frequency: 2.400-2.4835GHz
	support MIMO, rate up to 300Mbps,
	2T2R,2 external antenna 5dBi,
	Support: Multiple SSID
	Channel: Auto
	Modulation type: DSSS, CCK and OFDM
	Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
LED	Status of POWER, LOS, PON, SYS, LAN1~LAN4 ,WIFI, WPS, Internet,
Push-Button	3,For Function of Reset, WLAN, WPS
Operating Condition	Temperature: 0℃~+50℃
Operating Condition	Humidity: 10%～90%（non-condensing）
Storing Condition	Temperature: -30℃~+60℃
Storing Condition	Humidity: 10%~90%（non-condensing）
Power Supply	DC 12V/1A
Power Consumption	≤6W
Dimension	155mm×92mm×34mm（L×W×H）
Net Weight	0.24Kg

4. Panel lights Introduction

Pilot Lamp	Status	Description
PWR	On	The device is powered up.
PWR	Off	The device is powered down.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LOS	Blink	The device doses not receive optical signals.
LOS	Off	The device has received optical signal.
SYS	On	The device system runs normally.
SYS	Off	The device system runs abnormally.
INTERNET	Blink	The device network connection is normal.
INTERNET	Off	The device network connection is abnormal.
WIFI	On	The WIFI interface is up.
	Blink	The WIFI interface is sending or/and receiving data (ACT).
	Off	The WIFI interface is down.
WPS	Blink	The WIFI interface is securely establishing a connection.
WPS	Off	The WIFI interface does not establish a secure connection.
LAN1~LAN4	On	Port (LANx) is connected properly (LINK).
	Blink	Port (LANx) is sending or/and receiving data (ACT).
	Off	Port (LANx) connection exception or not connected.

5. Application

l Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)

l Typical Application(optional)：INTERNET、IPTV、VOD、VoIP、IP Camera etc.

Figure: All function Optional Application Diagram

6. Ordering information

Product Name	Product Model	Descriptions
XPON ONU 1G1F+WIFI	QF-HX103W	1×10/100/1000Mbps Ethernet, 3 x 10/100Mbps Ethernet , 1 SC/APC Connector, 2.4GHz WIFI, Plastic Casing, External power supply adapter
