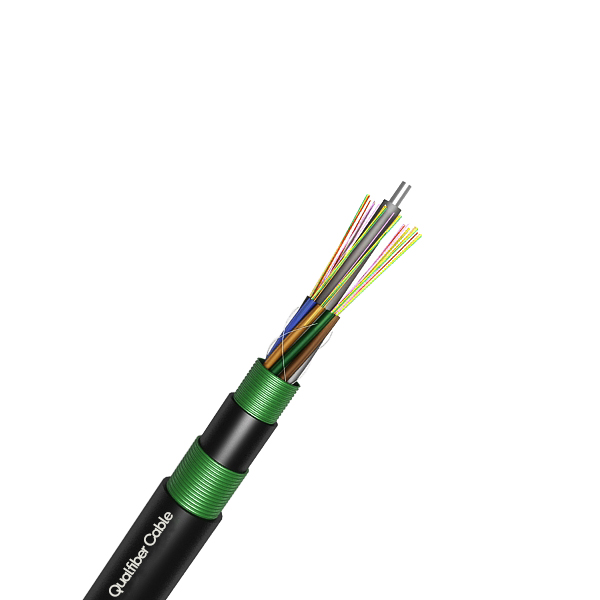

Armored Loose Tube Double Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today’s most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.
Structure details
| Fiber count | 96F | ||||||
| Loose tube | Material | PBT | Color | Standard spectrum | |||
| Diameter | 2.8±0.1mm | Thickness | 0.4±0.05mm | ||||
| Strength member | Material | FRP | Diameter | Φ1.0mm | |||
| Out sheath | Material | MDPE | Color | Black | |||
| Diameter | 7.0±0.5mm | Thickness | 2.0±0.2mm | ||||
Fiber Color
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color |  |
 |
 |
 |
 |
 |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color |  |
 |
 |
 |
 |
 |
Tube Color
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color |  |
 |
 |
 |
 |
 |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color |  |
 |
 |
 |
 |
 |
Mechanical and environment performance
| Tensile strength | Long term(N) | 400N | |||||
| Short term(N) | 800N | ||||||
| Crush load | Long term | 300N/100mm | |||||
| Short term | 1000N/100mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Installation Temperature | -10℃~+60℃ | ||||||
| Storage Temperature | -40℃~+70℃ | ||||||
Fiber Performance
| Fiber type | Unit | SM G652D | MM 50/125 | MM 62.5/125 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.36/0.24 | ≤3.0/1.5 | ≤3.0/1.5 | |||
| Cladding diameter | um | 125±1 | 125±1 | 125±1 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |||
Package
Packing material: Wooden drum.
Packing length: 2km per drum or customization.
