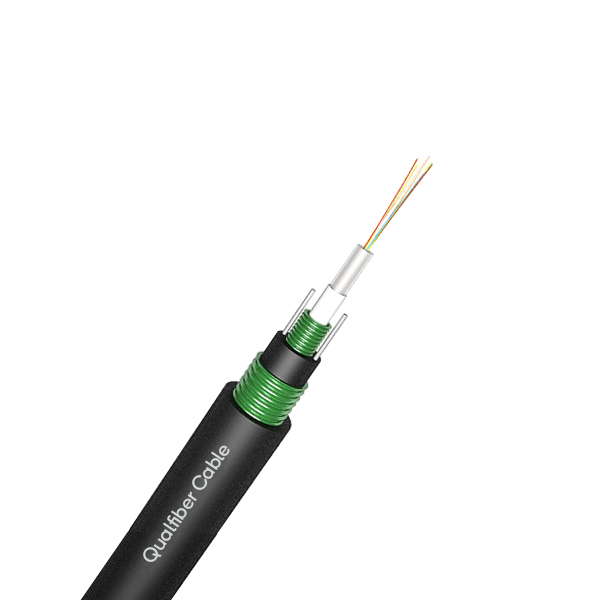

Double Steel Tape Armored Uni-tube Outdoor Fiber Optic Cable GYXTW53
Cable Construction Details
| Fiber count | 2F-24F | ||||||
| Strength member | Material | steel wire | Diameter | 0.8mm | |||
| Loose Tube | Material | PBT | Diameter | 2-16core | 2.2mm | ||
| 18-24core | 2.8mm | ||||||
| Tube-filling | Material | Filling compound | |||||
| Water blocking system | Material | water blocking tape | |||||
| Inner sheath | Material | MDPE | Color | Black | |||
| Diameter | 7.6±0.2mm | Thickness | 1.5±0.1mm | ||||
| Outer Sheath | Material | MDPE | Color | Black | |||
| Diameter | 12.2±0.5mm | Thickness | 1.7±0.2mm | ||||
Fiber Color
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color |  |
 |
 |
 |
 |
 |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color |  |
 |
 |
 |
 |
 |
| No. | 13 | 14 | 15 | 16 | 17 | 18 |
| Color |  |
 |
 |
 |
 |
 |
| No. | 19 | 20 | 21 | 22 | 23 | 24 |
| Color |  |
 |
 |
 |
 |
 |
Tube Color
Cable mechanical and environment characteristics
| Tensile strength | Long term（N） | 600N | |||||
| Short term（N） | 1500N | ||||||
| Crush load | Long term（N） | 500N/mm | |||||
| Short term（N） | 1500N/mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Installation Temperature | -10℃～+60℃ | ||||||
| Storage Temperature | -40℃～+70℃ | ||||||
Fiber characteristics
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.36/0.23 | ≤3.0/1.0 | ≤3.0/1.0 | |||
| Cladding diameter | um | 125±1 | 125±1 | 125±1 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |||
Package
Packing material: Wooden drum.
Packing length: 2km per drum or customization.
