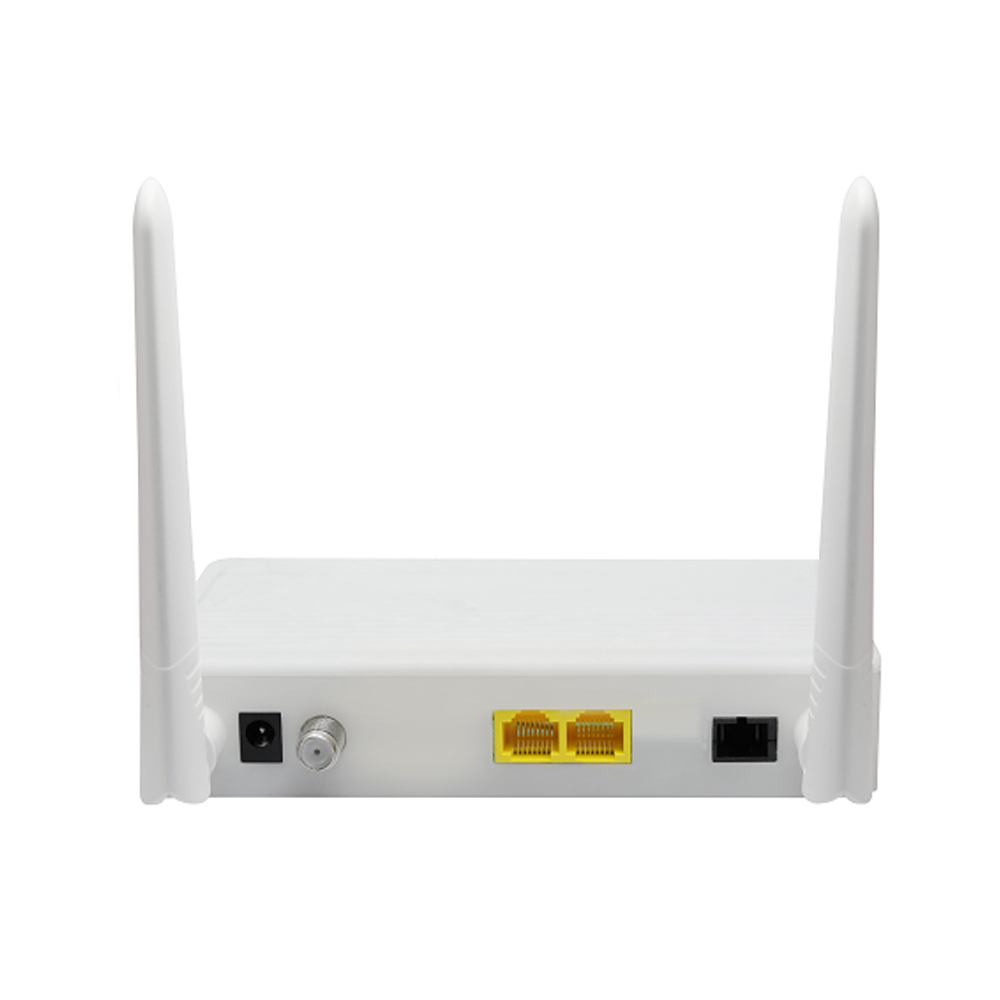

China QF-HX101WC 1GE+1FE WIFI+CATV XPON ONU (Both GPON and EPON) Manufacture and Factory

Product Detail

1. Overview

1G1F+WIFI+CATV series is designed as HGU(Home Gateway Unit) in deferent FTTH solutions by Qualfiber, The carrier-class FTTH application provides data service access.
1G1F+WIFI+CATV series is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT.
1G1F+WIFI+CATV series adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3,0 and GPON Standard of ITU-TG.984.X
1G1F+WIFI+CATV series is designed by Realtek chipset.

2. Functional Feature

Support EPON and GPON Mode, and switch mode automatically
Support ONU auto-discovery/Link detection/remote upgrade of software
WAN connections support Route and Bridge mode
Route mode supports PPPoE/DHCP/ static IP
Support WIFI Interface and multiple SSID
Support QoS and DBA
Support port Isolation and port VLAN configuration
Support Firewall function and IGMP snooping multicast feature
Support LAN IP and DHCP Server configuration;
Support Port Forwarding and Loop-Detect
Support TR069 remote configuration and maintenance
Support CATV interface for IPTV, remotely control by Qualfiber/Huawei/ZTE/FiberHome/OEM OLT.
Specialized design for system breakdown prevention to maintain stable system

3. Hardware Specification

Technical item	Details
PON Interface	2.5G GPON Class B+/C+/C++/C+++ & 1.25G EPON PX20+/PX20++/PX20+++)
	Receiving sensitivity: ≤-27dBm
	Transmitting optical power: 0~+4dBm
	Transmission distance: 20KM
Wavelength	TX: 1310nm, RX: 1490nm
Optical Interface	SC/APC Connector
LAN Interface	1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
CATV interface	RF, optical power : +2~-18dBm
	Optical reflection loss: ≥45dB
	Optical receiving wavelength: 1550±10nm
	RF frequency range: 47~1000MHz, RF output impedance: 75Ω
	RF output level: 78dBuV
	AGC range: 0~-15dBm
	MER: ≥32dB@-15dBm
Wireless	Compliant with IEEE802.11b/g/n,

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps,

2T2R,2 external antenna 5dBi,

Support: multiple SSID

Channel: Auto

Modulation type: DSSS, CCK and OFDM

Encoding scheme: BPSK, QPSK, 16QAM and 64QAMLEDStatus of POWER、LOS、PON、SYS、LAN1、LAN2、WIFI、WPS、Internet、Worn(CATV)、Normal(CATV)Push-Button3,For Function of Reset、WLAN、WPSOperating ConditionTemperature: 0℃~+50℃Humidity: 10%～90%（non-condensing）Storing ConditionTemperature: -30℃~+60℃Humidity: 10%~90%（non-condensing）Power SupplyDC 12V/1APower Consumption≤6WDimension155mm×92mm×34mm（L×W×H）Net Weight0.24Kg

4. Panel lights Introduction

Pilot Lamp	Status	Description
PWR	On	The device is powered up.
PWR	Off	The device is powered down.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LOS	Blink	The device doses not receive optical signals.
LOS	Off	The device has received optical signal.
SYS	On	The device system runs normally.
SYS	Off	The device system runs abnormally.
INTERNET	Blink	The device network connection is normal.
INTERNET	Off	The device network connection is abnormal.
WIFI	On	The WIFI interface is up.
	Blink	The WIFI interface is sending or/and receiving data (ACT).
	Off	The WIFI interface is down.
WPS	Blink	The WIFI interface is securely establishing a connection.
WPS	Off	The WIFI interface does not establish a secure connection.
LAN1	On	Port(LAN1) is connected properly (LINK).
	Blink	Port(LAN1) is sending or/and receiving data (ACT).
	Off	Port(LAN1) connection exception or not connected.
LAN2	On	Port(LAN2) is connected properly (LINK).
	Blink	Port(LAN2) is sending or/and receiving data (ACT).
	Off	Port(LAN2) connection exception or not connected.
Worn (CATV)	On	Input optical power is higher than 3dbm or lower than -13dbm
Worn (CATV)	Off	Input optical power is between -13dbm and 3dbm
Normal (CATV)	On	Input optical power is between -13dbm and 3dbm
Normal (CATV)	Off	Input optical power is higher than 3dbm or lower than -13dbm

5. Application

l Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)

l Typical Application(optional)：INTERNET、IPTV、VOD、VoIP、IP Camera etc.

Figure: All function Optional Application Diagram

6. Ordering information

Product Name	Product Model	Descriptions
XPON ONU 1G1F+WIFI+CATV	QF-HX101WC	1×10/100/1000Mbps Ethernet, 1 x 10/100Mbps Ethernet , 1 SC/APC Connector,1x CATV RF single fiber port, 2.4GHz WIFI , Plastic Casing, External power supply adapter
