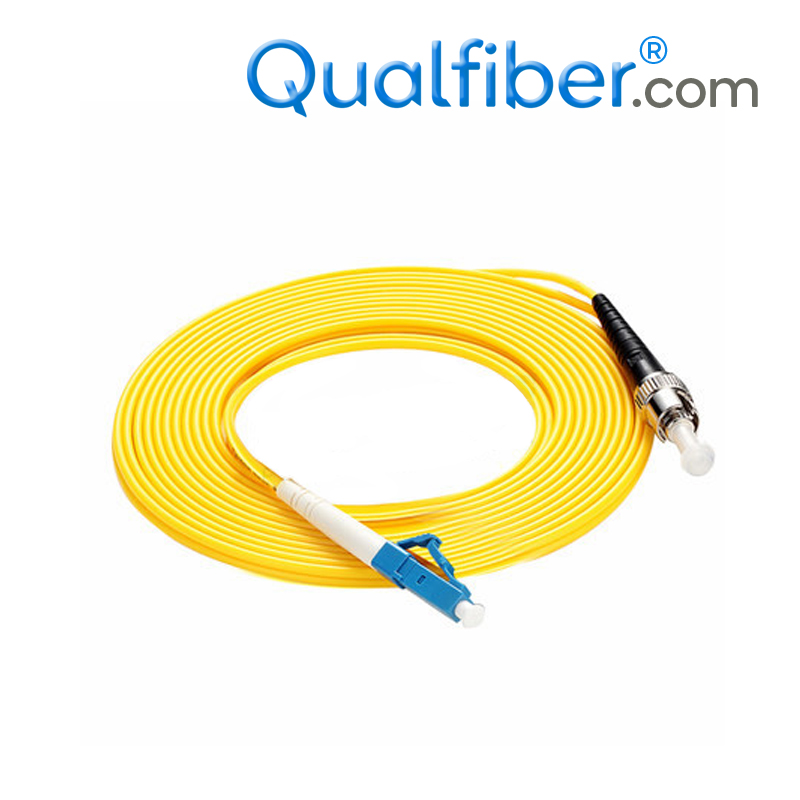

Optical fiber patch cord used as cross-connect jumpers, equipment, and work area cords in fiber 0ptic telecommunications and FTTH (Fiber To The Home), CATV & CCTV, Data Processing Networks
Application
1.Machine room
2.FTTH
3.Area network
4.Test equipment
5.National defence
6.FO sensor
7.Light communication system
8.Common antenna TV systemCharacteristics
1.Low insertion loss and high return loss.
2.High reliability and stability.
3.High tensile and bending performance.- Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
– Ferrule End-face: PC, UPC, APC
– Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
– Cable Quantity: Simplex, duplex or customized
– Cable Diameter: 3.0mm, 2.0mm, 0.9mm
– Cable Length: 1, 2, 3 meter or customized
– Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
| Item | Unit | SM | MM | ||||
| PC | UPC | APC | PC | ||||
| Insertion loss | dB | ≤0.20 | |||||
| Max. Insertion loss | dB | ≤0.30 | |||||
| Repeat-ability | dB | ≤0.10 | |||||
| Changeability | dB | ≤0.20 | |||||
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥35 | ||
| Operation Temperature | ℃ | -40 ~ +85 | |||||
| Storage temperature | ℃ | -40 ~ +85 | |||||
| Fiber type | um | 9/125 | 50/125, 62.5/125 | ||||
| Core number | Single or dual fiber | ||||||
| Durability | >1000times | ||||||
