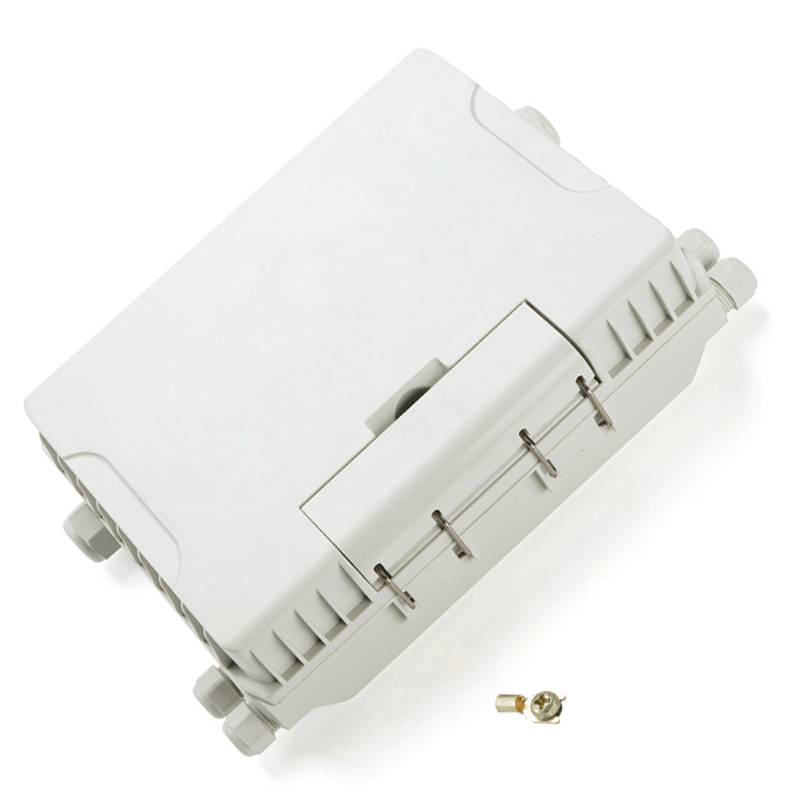

QF-KSW-24A fiber optic distribution box, Within a set of reliable fiber optic cable, cable fixed device. Selection of indoor and outdoor installation environment. Easy installation, reliable in quality.
QF-KSW-24A fiber optic distribution box, Within a set of reliable fiber optic cable, cable fixed device. Selection of indoor and outdoor installation environment. Easy installation, reliable in quality.
Product Details
1. Meet spectral and wiring of two Φ 10-15 optical fiber cables, and 8 figure or Φ3 soft cable, max capacity 24F.
2. Can be installed splitter(1:4,1:8,1:16),and FC or SC adapters.QF-KSW-24A is for adapters with 24pcs of FC or SC adapters , QF-KSW-24B/F is for module type splitter,2 pcs splitter(1:4,1:8)or 1 pcs splitter 1:16.
3. QF-KSW-24A/B available in an indoor and outdoor installation, QF-KSW-24F for indoor installations, installation method to pole-munting,wall-mounting.
4. Buckle type structure could seal the box and protect the lock.
5. Compound type turnover plate could be installed with module type splitter or adapters.
6. Combination of wall-mounting kit and pole-mounting kit, easier to install.
Note:Picture1~3 is QF-KSW-24A details,piture 4~6 is QF-KSW-24B details,picture 7~last one is QF-KSW-24F details.
Product parameters
| Type | QF-KSW-24A/B | Size(mm) | 374X264X112 |
| Protection grade | IP55 | Max capacity | 24F |
Ordering guide
| Type | Size(mm) | Weight(Kg) | Inner carton size(mm) | Out carton size(mm) |
| QF-KSW-24A | 374X264X112 | 2.1-3 | 395X275X145 (1PCS) | 575X415X490 (6PCS) |
